Frézy úhlové čelní
Popis produktu

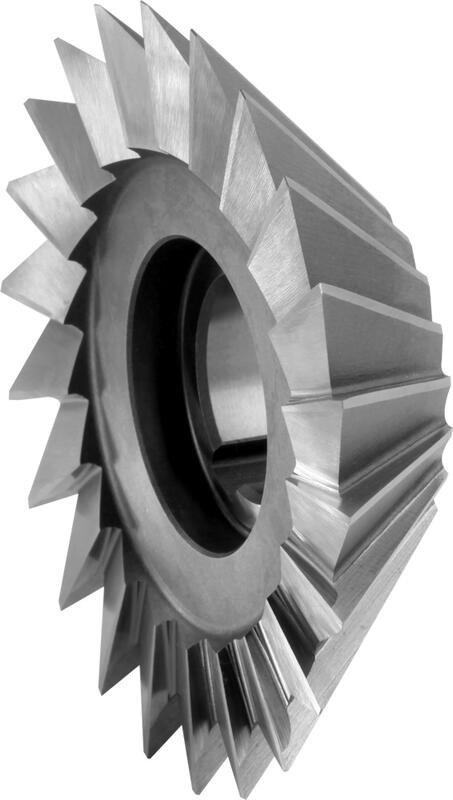

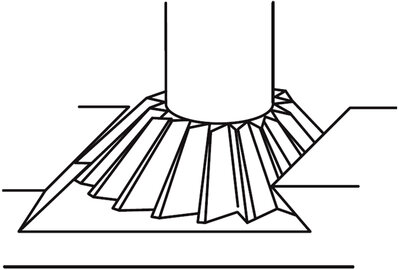

Frézy úhlové čelní, vyrobené z rychlořezné oceli HSS, dle normy DIN 842, vhodné na rybinové drážky, pro obrábění ocelí, litiny, mědi a slitin mědi.
|

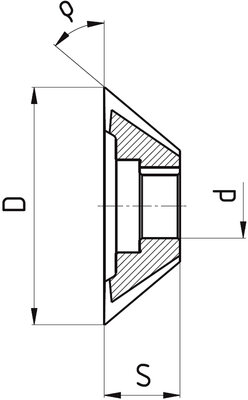

ϱ
±20' |
D
js 16 |
S
js 14 |
d
H 7 | Z | Kód zboží | Cena/ks | Skladem | Počet ks | |
|---|---|---|---|---|---|---|---|---|---|
| 45 | 40 | 10 | 10 | 14 | 853270.045040 | 1 880,- Kč 1 598,- Kč | Ano |
|
|
| 45 | 50 | 13 | 13 | 16 | 853270.045050 | 2 024,- Kč 1 720,- Kč | Ano |
|
|
| 45 | 63 | 18 | 16 | 18 | 853270.045063 | 2 103,- Kč 1 788,- Kč | Ano |
|
|
| 45 | 80 | 22 | 22 | 20 | 853270.045080 | 3 338,- Kč 2 837,- Kč | Ano |
|
|
| 45 | 100 | 28 | 27 | 22 | 853270.045100 | 5 222,- Kč 4 439,- Kč | Ano |
|
|
| 45 | 125 | 36 | 32 | 24 | 853270.045125 | 9 139,- Kč 7 768,- Kč | Ano |
|
|
| 45 | 160 | 45 | 40 | 28 | 853270.045160 | 15 502,- Kč 13 177,- Kč | Ano |
|
|
| 50 | 40 | 13 | 10 | 14 | 853270.050040 | 1 880,- Kč 1 598,- Kč | Ano |
|
|
| 50 | 50 | 16 | 13 | 16 | 853270.050050 | 1 967,- Kč 1 672,- Kč | Ano |
|
|
| 50 | 63 | 20 | 16 | 18 | 853270.050063 | 2 010,- Kč 1 709,- Kč | Ano |
|
|
| 50 | 80 | 25 | 22 | 20 | 853270.050080 | 3 184,- Kč 2 706,- Kč | Ano |
|
|
| 50 | 100 | 32 | 27 | 22 | 853270.050100 | 5 222,- Kč 4 439,- Kč | Ano |
|
|
| 50 | 125 | 40 | 32 | 24 | 853270.050125 | 9 139,- Kč 7 768,- Kč | Ano |
|
|
| 50 | 160 | 50 | 40 | 28 | 853270.050160 | 15 502,- Kč 13 177,- Kč | Ano |
|
|
| 55 | 40 | 13 | 10 | 14 | 853270.055040 | 1 880,- Kč 1 598,- Kč | Ano |
|
|
| 55 | 50 | 6 | 13 | 16 | 853270.055050 | 1 967,- Kč 1 672,- Kč | Ano |
|
|
| 55 | 63 | 20 | 16 | 18 | 853270.055063 | 2 102,- Kč 1 787,- Kč | Ano |
|
|
| 55 | 80 | 25 | 22 | 20 | 853270.055080 | 3 277,- Kč 2 785,- Kč | Ano |
|
|
| 55 | 100 | 32 | 27 | 22 | 853270.055100 | 5 222,- Kč 4 439,- Kč | Ano |
|
|
| 55 | 125 | 40 | 32 | 24 | 853270.055125 | 9 139,- Kč 7 768,- Kč | Ano |
|
|
| 60 | 40 | 13 | 10 | 14 | 853270.060040 | 1 795,- Kč 1 526,- Kč | Ano |
|
|
| 60 | 50 | 16 | 13 | 16 | 853270.060050 | 1 930,- Kč 1 641,- Kč | Ne |
|
|
| 60 | 63 | 20 | 16 | 18 | 853270.060063 | 2 103,- Kč 1 788,- Kč | Ano |
|
|
| 60 | 80 | 25 | 22 | 20 | 853270.060080 | 3 277,- Kč 2 785,- Kč | Ano |
|
|
| 60 | 100 | 32 | 27 | 22 | 853270.060100 | 5 222,- Kč 4 439,- Kč | Ano |
|
|
| 60 | 125 | 40 | 32 | 26 | 853270.060125 | 9 139,- Kč 7 768,- Kč | Ano |
|
|
| 60 | 160 | 50 | 40 | 28 | 853270.060160 | 15 502,- Kč 13 177,- Kč | Ano |
|
Řezné podmínky
Materiál |
Pevnost |
Ap |
Ae |
Vc |
fz(mm/z) Ø 40 |
Ø 50 |
Ø 63 |
Ø 80 |
Ø 100 |
Ø 125 |
Ø 160 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P.1 | Automatové a konstrukční oceli | ≤ 600 N/mm² | 0,8xS | 1xD | 30 | 0.025 | 0.03 | 0.035 | 0.04 | 0.043 | 0.048 | 0.052 |
| P.4 | Zušlechtěné oceli | ≤ 900 N/mm² | 0,8xS | 1xD | 20 | 0.025 | 0.03 | 0.035 | 0.04 | 0.043 | 0.048 | 0.052 |
| K.1 | Litina (≤ 240 HB) | ≤ 820 N/mm² | 0,8xS | 1xD | 25 | 0.025 | 0.03 | 0.035 | 0.04 | 0.043 | 0.048 | 0.052 |
| K.2 | Litina (> 240 HB) | > 800 N/mm² | 0,8xS | 1xD | 17 | 0.025 | 0.03 | 0.035 | 0.04 | 0.043 | 0.048 | 0.052 |
| N.4 | Měď, slitiny mědi, mosaz a bronz | ≤ 800 N/mm² | 0,8xS | 1xD | 50-90 | 0.025 | 0.03 | 0.035 | 0.04 | 0.043 | 0.048 | 0.052 |
Vlastnosti produktu
Upínací díra s podélnou drážkou pro pero dle DIN 138.
Úhel šroubovice = 0°, úhel čela = 2°.
Rychlořezná ocel středního výkonu, vhodná z hlediska houževnatosti na frézy menších průměrů a frézování materiálů do pevnosti 900 MPa.
Univerzální použití. Vhodné pro materiály do pevnosti 900 Mpa.
