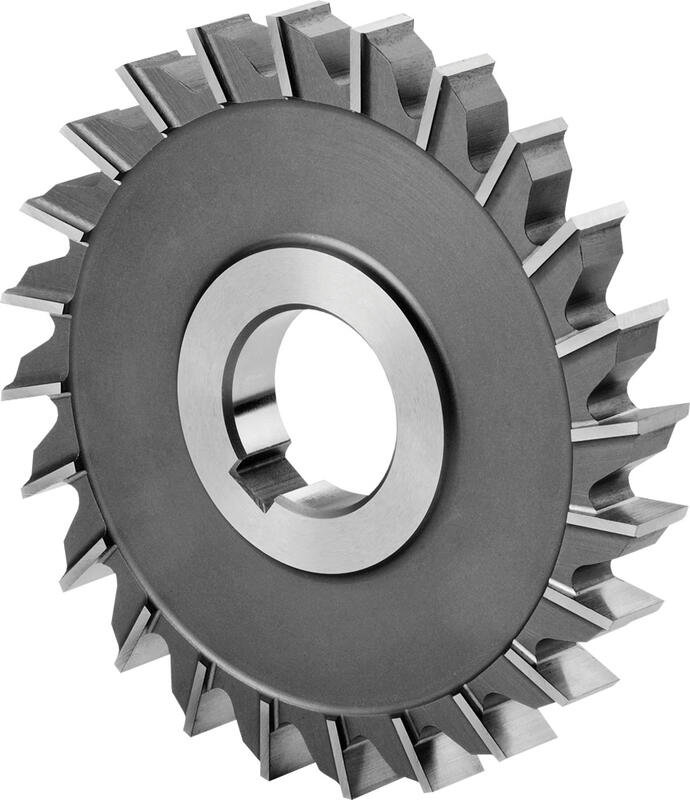

Frézy kotoučové, jemnozubé s přímými zuby, typ H
Popis produktu

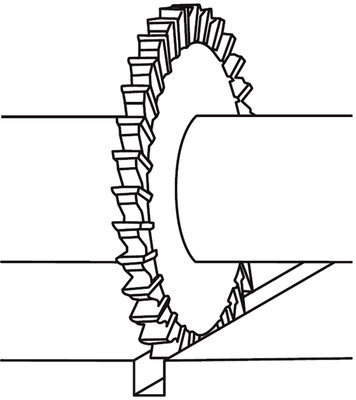

Frézy kotoučové, jemnožubé s přímými zuby, typ H, vyrobené z rychlořezné oceli HSS Co5, dle normy DIN 885 B, vhodné na drážkování, pro obrábění ocelí, litiny, mědi a slitin mědi.
|

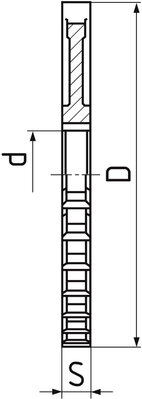

D
js 16 |
S
k 11 |
d
H 7 | Z | Kód zboží | Cena/ks | Skladem | Počet ks | |
|---|---|---|---|---|---|---|---|---|
| 50 | 4 | 16 | 16 | 739275.05004 | 2 071,- Kč 1 760,- Kč | Ano |
|
|
| 50 | 5 | 16 | 16 | 739275.05005 | 2 097,- Kč 1 782,- Kč | Ano |
|
|
| 50 | 6 | 16 | 16 | 739275.05006 | 2 131,- Kč 1 811,- Kč | Ano |
|
|
| 50 | 7 | 16 | 16 | 739275.05007 | 2 458,- Kč 2 089,- Kč | Ano |
|
|
| 50 | 8 | 16 | 16 | 739275.05008 | 2 504,- Kč 2 128,- Kč | Ano |
|
|
| 50 | 10 | 16 | 16 | 739275.05010 | 2 687,- Kč 2 284,- Kč | Ano |
|
|
| 63 | 4 | 22 | 18 | 739275.06304 | 2 726,- Kč 2 317,- Kč | Ano |
|
|
| 63 | 5 | 22 | 18 | 739275.06305 | 2 577,- Kč 2 190,- Kč | Ano |
|
|
| 63 | 6 | 22 | 18 | 739275.06306 | 2 550,- Kč 2 168,- Kč | Ano |
|
|
| 63 | 8 | 22 | 18 | 739275.06308 | 2 606,- Kč 2 215,- Kč | Ano |
|
|
| 63 | 10 | 22 | 18 | 739275.06310 | 2 749,- Kč 2 337,- Kč | Ano |
|
|
| 63 | 12 | 22 | 18 | 739275.06312 | 3 195,- Kč 2 716,- Kč | Ano |
|
|
| 63 | 14 | 22 | 18 | 739275.06314 | 3 827,- Kč 3 253,- Kč | Ano |
|
|
| 63 | 16 | 22 | 18 | 739275.06316 | 3 992,- Kč 3 393,- Kč | Ano |
|
|
| 63 | 18 | 22 | 18 | 739275.06318 | 4 341,- Kč 3 690,- Kč | Ano |
|
|
| 80 | 4 | 27 | 20 | 739275.08004 | 3 237,- Kč 2 751,- Kč | Ano |
|
|
| 80 | 5 | 27 | 20 | 739275.08005 | 3 075,- Kč 2 614,- Kč | Ano |
|
|
| 80 | 6 | 27 | 20 | 739275.08006 | 3 135,- Kč 2 665,- Kč | Ano |
|
|
| 80 | 8 | 27 | 20 | 739275.08008 | 3 217,- Kč 2 734,- Kč | Ano |
|
|
| 80 | 10 | 27 | 20 | 739275.08010 | 3 523,- Kč 2 995,- Kč | Ano |
|
|
| 80 | 12 | 27 | 20 | 739275.08012 | 3 869,- Kč 3 289,- Kč | Ano |
|
|
| 80 | 14 | 27 | 20 | 739275.08014 | 4 083,- Kč 3 471,- Kč | Ano |
|
|
| 80 | 16 | 27 | 20 | 739275.08016 | 4 805,- Kč 4 084,- Kč | Ano |
|
|
| 80 | 18 | 27 | 20 | 739275.08018 | 5 168,- Kč 4 393,- Kč | Ano |
|
|
| 80 | 20 | 27 | 20 | 739275.08020 | 5 231,- Kč 4 446,- Kč | Ano |
|
|
| 100 | 6 | 32 | 24 | 739275.10006 | 3 747,- Kč 3 185,- Kč | Ano |
|
|
| 100 | 8 | 32 | 24 | 739275.10008 | 4 113,- Kč 3 496,- Kč | Ne |
|
|
| 100 | 10 | 32 | 24 | 739275.10010 | 4 539,- Kč 3 858,- Kč | Ano |
|
|
| 100 | 12 | 32 | 24 | 739275.10012 | 5 029,- Kč 4 275,- Kč | Ano |
|
|
| 100 | 14 | 32 | 24 | 739275.10014 | 5 823,- Kč 4 950,- Kč | Ano |
|
|
| 100 | 16 | 32 | 24 | 739275.10016 | 6 188,- Kč 5 260,- Kč | Ano |
|
|
| 100 | 18 | 32 | 24 | 739275.10018 | 7 146,- Kč 6 074,- Kč | Ano |
|
|
| 100 | 20 | 32 | 24 | 739275.10020 | 7 523,- Kč 6 395,- Kč | Ano |
|
|
| 100 | 22 | 32 | 24 | 739275.10022 | 7 729,- Kč 6 570,- Kč | Ano |
|
|
| 100 | 25 | 32 | 24 | 739275.10025 | 8 061,- Kč 6 852,- Kč | Ano |
|
|
| 125 | 6 | 32 | 24 | 739275.12506 | 5 423,- Kč 4 610,- Kč | Ano |
|
|
| 125 | 8 | 32 | 24 | 739275.12508 | 5 863,- Kč 4 984,- Kč | Ano |
|
|
| 125 | 10 | 32 | 24 | 739275.12510 | 6 046,- Kč 5 139,- Kč | Ano |
|
|
| 125 | 12 | 32 | 24 | 739275.12512 | 6 352,- Kč 5 399,- Kč | Ne |
|
|
| 125 | 14 | 32 | 24 | 739275.12514 | 7 389,- Kč 6 281,- Kč | Ano |
|
|
| 125 | 16 | 32 | 24 | 739275.12516 | 7 952,- Kč 6 759,- Kč | Ano |
|
|
| 125 | 18 | 32 | 24 | 739275.12518 | 8 549,- Kč 7 267,- Kč | Ano |
|
|
| 125 | 20 | 32 | 24 | 739275.12520 | 8 671,- Kč 7 370,- Kč | Ne |
|
|
| 125 | 25 | 32 | 24 | 739275.12525 | 10 364,- Kč 8 809,- Kč | Ano |
|
|
| 160 | 10 | 40 | 24 | 739275.16010 | 8 962,- Kč 7 618,- Kč | Ano |
|
|
| 160 | 12 | 40 | 24 | 739275.16012 | 10 022,- Kč 8 519,- Kč | Ano |
|
|
| 160 | 14 | 40 | 24 | 739275.16014 | 11 167,- Kč 9 492,- Kč | Ano |
|
|
| 160 | 16 | 40 | 24 | 739275.16016 | 12 111,- Kč 10 294,- Kč | Ano |
|
|
| 160 | 18 | 40 | 24 | 739275.16018 | 13 063,- Kč 11 104,- Kč | Ano |
|
|
| 160 | 20 | 40 | 24 | 739275.16020 | 13 680,- Kč 11 628,- Kč | Ano |
|
|
| 200 | 10 | 40 | 32 | 739275.20010 | 12 481,- Kč 10 609,- Kč | Ano |
|
|
| 200 | 12 | 40 | 32 | 739275.20012 | 14 464,- Kč 12 294,- Kč | Ano |
|
|
| 200 | 14 | 40 | 32 | 739275.20014 | 16 972,- Kč 14 426,- Kč | Ano |
|
|
| 200 | 16 | 40 | 32 | 739275.20016 | 17 522,- Kč 14 894,- Kč | Ano |
|
|
| 200 | 18 | 40 | 32 | 739275.20018 | 18 833,- Kč 16 008,- Kč | Ano |
|
|
| 200 | 20 | 40 | 32 | 739275.20020 | 21 118,- Kč 17 950,- Kč | Ano |
|
Řezné podmínky
Materiál |
Pevnost |
Ap |
Ae |
Vc |
fz(mm/z) Ø 50 |
Ø 63 |
Ø 80 |
Ø 100 |
Ø 125 |
Ø 160 |
Ø 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P.1 | Automatové a konstrukční oceli | ≤ 600 N/mm² | 0,1xD | 1xS | 37.5 | 0.05 | 0.06 | 0.07 | 0.08 | 0.09 | 0.092 | 0.095 |
| P.2 | Konstrukční a lité oceli | ≤ 850 N/mm² | 0,1xD | 1xS | 32.5 | 0.05 | 0.06 | 0.07 | 0.08 | 0.09 | 0.092 | 0.095 |
| P.4 | Zušlechtěné oceli | ≤ 900 N/mm² | 0,1xD | 1xS | 25 | 0.05 | 0.06 | 0.07 | 0.08 | 0.09 | 0.092 | 0.095 |
| P.5 | Nástrojové oceli vysocelegované | ≤ 1100 N/mm² | 0,1xD | 1xS | 18 | 0.05 | 0.06 | 0.07 | 0.08 | 0.09 | 0.092 | 0.095 |
| K.1 | Litina (≤ 240 HB) | ≤ 820 N/mm² | 0,1xD | 1xS | 30 | 0.05 | 0.06 | 0.07 | 0.08 | 0.09 | 0.092 | 0.095 |
| K.2 | Litina (> 240 HB) | > 800 N/mm² | 0,1xD | 1xS | 22 | 0.05 | 0.06 | 0.07 | 0.08 | 0.09 | 0.092 | 0.095 |
| N.4 | Měď, slitiny mědi, mosaz a bronz | ≤ 800 N/mm² | 0,1xD | 1xS | 60-100 | 0.05 | 0.06 | 0.07 | 0.08 | 0.09 | 0.092 | 0.095 |
Vlastnosti produktu
Upínací díra s podélnou drážkou pro pero dle DIN 138.
Úhel šroubovice = 0°, úhel čela = 8°.
Vysoce výkonná rychlořezná ocel s dobrou houževnatostí pro frézy a pro frézování materiálů do pevnosti 1200 MPa.
Určeno pro frézování (dokončování) materiálů o střední až vyšší pevnosti (do 1200 Mpa). Opracování Ra 3,2; výjimečně i 1,6.
