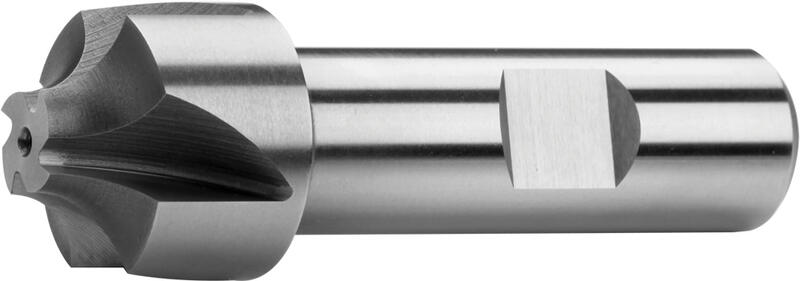

Frézy čtvrtkruhové vyduté, ploška weldon
Popis produktu

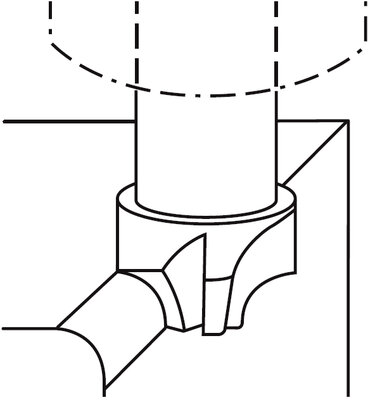

Frézy čtvrtkruhové vyduté, ploška weldon, vyrobené z rychlořezné oceli HSS Co8, dle normy DIN 6518, vhodné na zaoblení hran, pro obrábění ocelí, titanu a slitin titanu.
|

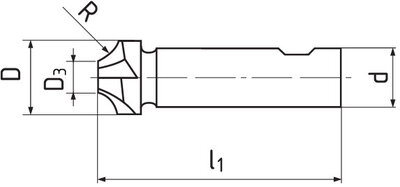

R
H 11 |
D
js 15 | D3 |
d
h 6 | l1 | Z | Kód zboží | Cena/ks | Skladem | Počet ks | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 8 | 6 | 10 | 60 | 4 | 360018.010 | 1 356,- Kč 1 153,- Kč | Ano |
|
|
| 1,25 | 8,5 | 6 | 10 | 60 | 4 | 360018.0125 | 1 556,- Kč 1 323,- Kč | Ano |
|
|
| 1,5 | 9 | 6 | 10 | 60 | 4 | 360018.015 | 1 517,- Kč 1 289,- Kč | Ano |
|
|
| 1,6 | 9,2 | 6 | 10 | 60 | 4 | 360018.016 | 1 517,- Kč 1 289,- Kč | Ano |
|
|
| 2 | 10 | 6 | 10 | 60 | 4 | 360018.020 | 1 517,- Kč 1 289,- Kč | Ano |
|
|
| 2,5 | 11 | 6 | 10 | 60 | 4 | 360018.025 | 1 517,- Kč 1 289,- Kč | Ne |
|
|
| 3 | 12 | 6 | 12 | 60 | 4 | 360018.030 | 1 578,- Kč 1 341,- Kč | Ano |
|
|
| 3,5 | 13 | 6 | 12 | 60 | 4 | 360018.035 | 1 706,- Kč 1 450,- Kč | Ano |
|
|
| 4 | 14 | 6 | 12 | 60 | 4 | 360018.040 | 1 706,- Kč 1 450,- Kč | Ano |
|
|
| 4,5 | 15 | 6 | 12 | 60 | 4 | 360018.045 | 1 830,- Kč 1 556,- Kč | Ano |
|
|
| 5 | 16 | 6 | 12 | 60 | 4 | 360018.050 | 1 830,- Kč 1 556,- Kč | Ne |
|
|
| 5,5 | 19 | 8 | 16 | 67 | 4 | 360018.055 | 1 928,- Kč 1 639,- Kč | Ano |
|
|
| 6 | 20 | 8 | 16 | 67 | 4 | 360018.060 | 1 928,- Kč 1 639,- Kč | Ne |
|
|
| 6,5 | 21 | 8 | 16 | 71 | 4 | 360018.065 | 2 370,- Kč 2 015,- Kč | Ano |
|
|
| 7 | 22 | 8 | 16 | 71 | 4 | 360018.070 | 2 370,- Kč 2 015,- Kč | Ano |
|
|
| 7,5 | 23 | 8 | 16 | 71 | 4 | 360018.075 | 2 370,- Kč 2 015,- Kč | Ano |
|
|
| 8 | 24 | 8 | 16 | 71 | 4 | 360018.080 | 2 370,- Kč 2 015,- Kč | Ano |
|
|
| 8,5 | 25 | 8 | 25 | 85 | 4 | 360018.085 | 2 852,- Kč 2 424,- Kč | Ano |
|
|
| 9 | 26 | 8 | 25 | 85 | 4 | 360018.090 | 2 852,- Kč 2 424,- Kč | Ano |
|
|
| 9,5 | 27 | 8 | 25 | 85 | 4 | 360018.095 | 2 852,- Kč 2 424,- Kč | Ano |
|
|
| 10 | 28 | 8 | 25 | 85 | 4 | 360018.100 | 2 852,- Kč 2 424,- Kč | Ne |
|
|
| 10,5 | 31 | 10 | 25 | 90 | 4 | 360018.105 | 3 153,- Kč 2 680,- Kč | Ano |
|
|
| 11 | 32 | 10 | 25 | 90 | 4 | 360018.110 | 3 153,- Kč 2 680,- Kč | Ano |
|
|
| 12 | 34 | 10 | 25 | 90 | 4 | 360018.120 | 3 153,- Kč 2 680,- Kč | Ano |
|
|
| 12,5 | 41 | 16 | 25 | 100 | 6 | 360018.125 | 4 941,- Kč 4 200,- Kč | Ano |
|
|
| 13 | 42 | 16 | 25 | 100 | 6 | 360018.130 | 4 595,- Kč 3 906,- Kč | Ano |
|
|
| 14 | 44 | 16 | 25 | 100 | 6 | 360018.140 | 4 547,- Kč 3 865,- Kč | Ano |
|
|
| 15 | 46 | 16 | 25 | 100 | 6 | 360018.150 | 5 198,- Kč 4 418,- Kč | Ano |
|
|
| 16 | 48 | 16 | 25 | 100 | 6 | 360018.160 | 5 349,- Kč 4 547,- Kč | Ne |
|
|
| 18 | 52 | 16 | 32 | 112 | 6 | 360018.180 | 6 033,- Kč 5 128,- Kč | Ano |
|
|
| 19 | 56 | 18 | 32 | 112 | 6 | 360018.190 | 6 489,- Kč 5 516,- Kč | Ano |
|
|
| 20 | 56 | 16 | 32 | 112 | 6 | 360018.200 | 6 512,- Kč 5 535,- Kč | Ano |
|
|
| 25 | 72 | 22 | 32 | 118 | 6 | 360018.250 | 10 996,- Kč 9 347,- Kč | Ano |
|
Řezné podmínky
Materiál |
Pevnost |
Ap |
Ae |
Vc |
fz(mm/z) R1 |
R2 |
R3 |
R5 |
R6 |
R8,5 |
R10 |
R12 |
R13 |
R16 |
R20 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P.1 | Automatové a konstrukční oceli | ≤ 600 N/mm² | 1xR | 1xR | 30 | 0.013 | 0.017 | 0.02 | 0.031 | 0.036 | 0.042 | 0.047 | 0.057 | 0.07 | 0.08 | 0.094 |
| P.2 | Konstrukční a lité oceli | ≤ 850 N/mm² | 1xR | 1xR | 25 | 0.013 | 0.017 | 0.02 | 0.031 | 0.036 | 0.042 | 0.047 | 0.057 | 0.07 | 0.08 | 0.094 |
| P.3 | Nástrojové oceli nízkolegované | ≤ 1100 N/mm² | 1xR | 1xR | 20 | 0.013 | 0.017 | 0.02 | 0.031 | 0.036 | 0.042 | 0.047 | 0.057 | 0.07 | 0.08 | 0.094 |
| N.2 | Slitiny hliníku (Si ≤ 12%) | ≤ 600 N/mm² | 1xR | 1xR | 40 | 0.017 | 0.022 | 0.026 | 0.04 | 0.047 | 0.054 | 0.061 | 0.074 | 0.091 | 0.104 | 0.122 |
| S.2 | Titan, slitiny titanu | ≤ 1250 N/mm² | 1xR | 1xR | 11 | 0.009 | 0.012 | 0.014 | 0.022 | 0.025 | 0.029 | 0.033 | 0.04 | 0.049 | 0.056 | 0.066 |
Vlastnosti produktu
Válcová stopka s ploškou (Weldon) dle DIN 1835 B.
Možné směry posuvu - jeden směr
Úhel šroubovice = 0°, úhel čela = 9°
Vysoce výkonná ocel s dobrou houževnatostí a výbornou teplotní odolností. Vhodná především pro frézování vysoce pevných materiálů, austenitických ocelí, ocelí pro tváření za tepla atd.
