350015 High-speed steel HSS Co5 DIN 1833D
Clamping element
Tool geometry
Cutting edges on the perimeter of the angle cutter
Feed direction possibility
Material HSS Co5

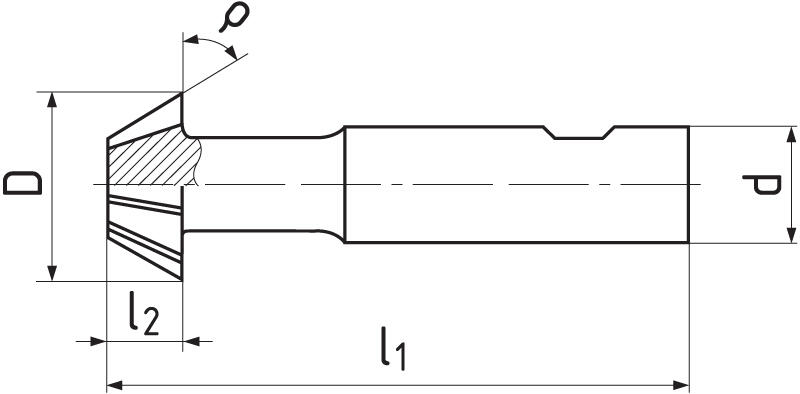

Inverted dovetail milling cutters, Weldon shank
ϱ
±30'
D
js 16
d
h 6
l1 l2 Z Item code On stock
45 16 12 60 4 10 350015.045160 Yes
45 20 12 63 5 10 350015.045200 Yes
45 25 12 67 6,3 10 350015.045250 No
45 32 16 71 8 12 350015.045320 Yes
45 40 16 80 10 12 350015.045400 No
50 16 12 60 5 12 350015.050160 Yes
50 20 12 63 6,3 12 350015.050200 Yes
50 25 12 67 8 12 350015.050250 Yes
55 16 12 60 5,6 10 350015.055160 Yes
55 20 12 63 7,1 12 350015.055200 Yes
55 25 12 67 9 12 350015.055250 Yes
60 16 12 60 6,3 10 350015.060160 Yes
60 20 12 63 8 10 350015.060200 Yes
60 25 12 67 10 10 350015.060250 Yes
65 16 12 60 6,3 10 350015.065160 No
65 25 12 67 10 12 350015.065250 Yes
70 16 12 60 7 10 350015.070160 Yes
70 20 12 63 9 10 350015.070200 Yes
70 25 16 67 11 10 350015.070250 Yes
75 16 12 60 8 10 350015.075160 Yes
75 25 12 67 10 12 350015.075250 Yes

ϱ ≧ 65 ≠ DIN 1833 D

Cutting conditions


Material

Strength

Ap

Ae

Vc
fz(mm/z)
Ø 16

Ø 20

Ø 25

Ø 32

Ø 36

Ø 40
P.1 | Free-cutting steel, general construction steels ≤ 600 N/mm² 1xl2 0,2xD 28 0.011 0.014 0.018 0.022 0.025 0.028
P.2 | General construction steels, steel casting ≤ 850 N/mm² 1xl2 0,2xD 24 0.01 0.012 0.015 0.019 0.022 0.024
P.3 | Tools steels low alloyed ≤ 1100 N/mm² 1xl2 0,2xD 18 0.01 0.012 0.015 0.019 0.022 0.024
N.2 | Aluminium cast alloys Si (Si ≤ 12%) ≤ 600 N/mm² 1xl2 0,2xD 41 0.011 0.014 0.018 0.022 0.025 0.028
S.2 | Titanium, titanium alloys ≤ 1250 N/mm² 1xl2 0,2xD 9 0.007 0.08 0.011 0.013 0.015 0.017

Calculations of cutting conditions

Product attributes

Clamping element

Clamping element

more +
Straight shank with clamping flat (Weldon) according to DIN 1835 B.
Cutting edges on the perimeter of the angle cutter

Cutting edges on the perimeter of the angle cutter

Material HSS Co5

Material HSS Co5

more +
Very high performance high speed steel with good toughness for milling cutters and for milling of materials up to the strength of 1200 MPa.
Tool geometry

Tool geometry

more +
Helix angle = 0°. Rake angle = 0°.
Feed direction possibility

Feed direction possibility
