350005High-speed steel HSS Co5DIN 1833B
Clamping element
Tool geometry
Cutting edges on the perimeter of the angle cutter
Feed direction possibility
Material HSS Co5

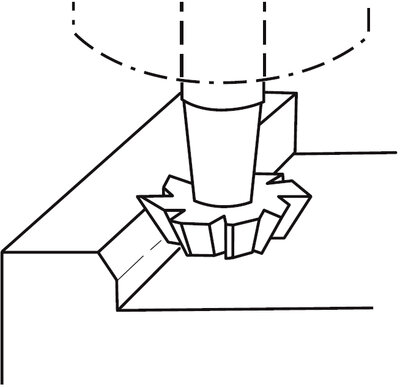

Inverted dovetail milling cutters, plain shank
ϱ
±30'
D
js 16
d
h 6
l1 l2 Z Item codeOn stock
45161260410 350005.045160 Yes
45201263510 350005.045200 No
452512676,310 350005.045250 No
45321671812 350005.045320 Yes
601612606,310 350005.060160 Yes
60201263810 350005.060200 Yes
602512671010 350005.060250 Yes
6032127112,512 350005.060320 No
70161260710 350005.070160 Yes
70201263910 350005.070200 Yes
702516671110 350005.070250 Yes
75161260810 350005.075160 No
752512671012 350005.075250 Yes

ϱ ≧ 65 ≠ DIN 1833 B

Cutting conditions


Material

Strength

Ap

Ae

Vc
fz(mm/z)
Ø 16

Ø 20

Ø 25

Ø 32

Ø 36

Ø 40
P.1 | Free-cutting steel, general construction steels≤ 600 N/mm²1xl20,2xD280.0110.0140.0180.0220.0250.028
P.2 | General construction steels, steel casting≤ 850 N/mm²1xl20,2xD240.010.0120.0150.0190.0220.024
P.3 | Tools steels low alloyed≤ 1100 N/mm²1xl20,2xD180.010.0120.0150.0190.0220.024
N.2 | Aluminium cast alloys Si (Si ≤ 12%)≤ 600 N/mm²1xl20,2xD410.0110.0140.0180.0220.0250.028
S.2 | Titanium, titanium alloys≤ 1250 N/mm²1xl20,2xD90.0070.080.0110.0130.0150.017

Calculations of cutting conditions

Product attributes

Clamping element

Clamping element

more +
Plain straight shank according to DIN 1835 A.
Cutting edges on the perimeter of the angle cutter

Cutting edges on the perimeter of the angle cutter

Material HSS Co5

Material HSS Co5

more +
Very high performance high speed steel with good toughness for milling cutters and for milling of materials up to the strength of 1200 MPa.
Tool geometry

Tool geometry

more +
Helix angle = 0°. Rake angle = 0°.
Feed direction possibility

Feed direction possibility
