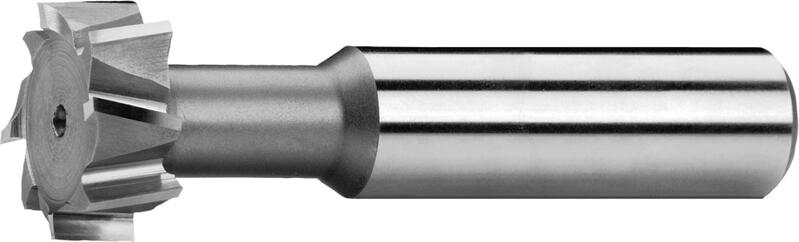

T-slot cutters, type N, plain shank

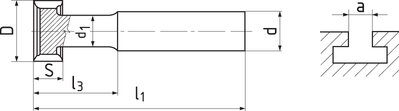

D
d 11 |
S
d 11 |
d
h 6 | l1 | l3 | d1 | Z | a | Item code | On stock |
---|---|---|---|---|---|---|---|---|---|
11 | 4 | 10 | 53,5 | 13,5 | 4 | 6 | 5 | 310205.110 | Yes |
12,5 | 6 | 10 | 57 | 17 | 5 | 6 | 6 | 310205.125 | Yes |
16 | 8 | 10 | 62 | 22 | 7 | 6 | 8 | 310205.160 | Yes |
18 | 8 | 12 | 70 | 25 | 8 | 6 | 10 | 310205.180 | No |
19* | 9 | 12 | 71 | 26 | 8 | 6 | 8 | 310205.190 | Yes |
21 | 9 | 12 | 74 | 29 | 10 | 6 | 12 | 310205.210 | Yes |
22* | 10 | 12 | 75 | 30 | 10 | 6 | 10 | 310205.220 | Yes |
25 | 11 | 16 | 82 | 34 | 12 | 8 | 14 | 310205.250 | Yes |
28* | 12 | 16 | 85 | 37 | 13 | 8 | 13 | 310205.280 | Yes |
32 | 14 | 16 | 90 | 42 | 15 | 8 | 18 | 310205.320 | Yes |
36* | 16 | 25 | 103 | 47 | 17 | 8 | 17 | 310205.360 | Yes |
40 | 18 | 25 | 108 | 52 | 19 | 10 | 22 | 310205.400 | Yes |
45* | 20 | 25 | 113 | 57 | 21 | 10 | 21 | 310205.450 | Yes |
50 | 22 | 32 | 124 | 64 | 25 | 10 | 28 | 310205.500 | Yes |
60 | 28 | 32 | 139 | 79 | 30 | 10 | 36 | 310205.600 | Yes |
*) ≠ DIN 851, ≠ DIN 650
Cutting conditions
Material |
Strength |
Ap |
Ae |
Vc |
fz(mm/z) Ø 12,5 |
Ø 16 |
Ø 18 |
Ø 21 |
Ø 25 |
Ø 32 |
Ø 40 |
Ø 50 |
Ø 60 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
P.1 | Free-cutting steel, general construction steels | ≤ 600 N/mm² | 1xS | Dxa | 28 | 0.008 | 0.013 | 0.014 | 0.017 | 0.028 | 0.036 | 0.042 | 0.05 | 0.057 |
P.2 | General construction steels, steel casting | ≤ 850 N/mm² | 1xS | Dxa | 24 | 0.008 | 0.013 | 0.014 | 0.017 | 0.028 | 0.036 | 0.042 | 0.05 | 0.057 |
P.3 | Tools steels low alloyed | ≤ 1100 N/mm² | 1xS | Dxa | 18 | 0.008 | 0.013 | 0.014 | 0.017 | 0.028 | 0.036 | 0.042 | 0.05 | 0.057 |
N.2 | Aluminium cast alloys Si (Si ≤ 12%) | ≤ 600 N/mm² | 1xS | Dxa | 38 | 0.01 | 0.017 | 0.018 | 0.022 | 0.036 | 0.047 | 0.055 | 0.065 | 0.074 |
S.2 | Titanium, titanium alloys | ≤ 1250 N/mm² | 1xS | Dxa | 9 | 0.006 | 0.009 | 0.01 | 0.012 | 0.02 | 0.025 | 0.029 | 0.035 | 0.04 |
Calculations of cutting conditions
Product attributes
Clamping element
more +Plain straight shank according to DIN 1835 A.
Tool geometry
more +Helix angle = 10°.
Rake angle = 10°.
Feed direction possibility
Type N
more +Universal usage. Suitable for materials up to strength 900 MPa.
Cutting edges on the face and perimeter of the side and face cutter
Material HSS Co5
more +Very high performance high speed steel with good toughness for milling cutters and for milling of materials up to the strength of 1200 MPa.
