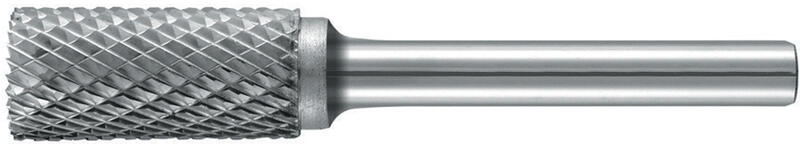

T1002MX Solid carbide (SC) ~DIN 8033/ZYA-S
Clamping element
Type MX
Feed direction possibility
End face design
Solid carbide
D d l1 l2 Item code On stock
3 3 38 14 T1002MX.030 Yes
6 6 50 16 T1002MX.060 Yes
8 6 65 20 T1002MX.080 Yes
10 6 65 20 T1002MX.100 Yes
12 6 70 25 T1002MX.120 Yes

Cutting conditions


Material

Strength
P.1 | Free-cutting steels, general construction steels ≤ 600 N/mm²
P.2 | General construction steels, steel casting ≤ 850 N/mm²
P.3 | Tool steels low alloyed ≤ 1100 N/mm²
P.4 | Heat treatable steels ≤ 900 N/mm²
P.5 | Tool steels low alloyed ≤ 1100 N/mm²
P.6 | Tool and treated steels > 1100 N/mm²
K.1 | Cast iron (≤ 240 HB) ≤ 820 N/mm²
K.2 | Cast iron (> 240 HB) > 800 N/mm²
N.1 | Aluminium, aluminium cast alloys (Si ≤ 6%) ≤ 400 N/mm²
N.2 | Aluminium cast alloys (Si ≤ 12%) ≤ 600 N/mm²
N.3 | Aluminium cast alloys (Si > 12%) ≤ 600 N/mm²
N.4 | Cooper-zinc alloys, cooper-tin alloys ≤ 800 N/mm²
S.1 | Chrome-nickle alloys ≤ 1500 N/mm²
S.2 | Titanium, titanium cast alloys ≤ 1250 N/mm²



Product attributes

Clamping element

Clamping element

more +
Plain straight shank according to DIN 6535 HA.
Feed direction possibility

Feed direction possibility

Solid carbide

Solid carbide

more +
Carbide materials are characterised by high compressive strength, high hardness and therefore high wear resistance, but also limited flexural strength and toughness.
Type MX

Type MX

more +
Blade type MX (cross toothing) is a versatile alternative for both soft and hard materials. Its design reduces tool chatter and chip breakage into gritty shapes. These smaller chips also help eliminate groove loading.
End face design

End face design
