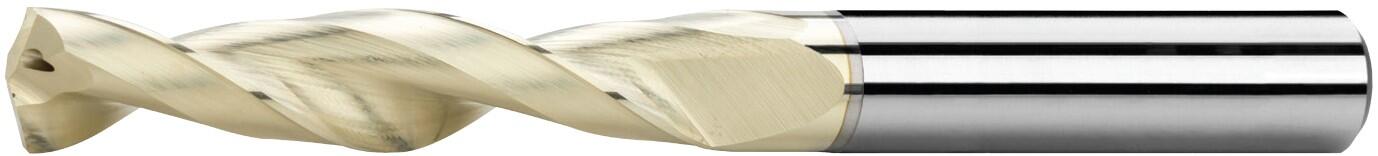

S10132 Solid carbide (SC)
Clamping element
Type W
Point angle 140°
Drilling depth 5xD
Right helix
With coolant holes
Solid carbide
ZrN coating
D d l1 l2 Item code On stock
3 6 66 28 S10132.030 Yes
3,5 6 66 28 S10132.035 Yes
4 6 74 36 S10132.040 Yes
4,5 6 74 36 S10132.045 Yes
5 6 82 44 S10132.050 Yes
5,5 6 82 44 S10132.055 No
6 6 82 44 S10132.060 Yes
6,5 8 91 53 S10132.065 Yes
7 8 91 53 S10132.070 Yes
7,5 8 91 53 S10132.075 No
8 8 91 53 S10132.080 Yes
8,5 10 103 61 S10132.085 No
9 10 103 61 S10132.090 Yes
9,5 10 103 61 S10132.095 No
10 10 103 61 S10132.100 Yes
12 12 118 71 S10132.120 Yes
14 14 124 77 S10132.140 Yes
15 16 133 83 S10132.150 Yes
16 16 133 83 S10132.160 No
18 18 143 93 S10132.180 No
20 20 153 101 S10132.200 No

Cutting conditions


Material

Strength

Vc
fz(mm/r)
Ø3

Ø5

Ø8

Ø10

Ø12

Ø15

Ø17

Ø20
N.1 | Aluminium, Aluminium cast alloys Si (Si ≤ 6%) ≤ 400 N/mm² 260 0,14 0,14 0,2 0,28 0,35 0,35 0,45 0,45
N.2 | Aluminium cast alloys Si (Si ≤ 12%) ≤ 600 N/mm² 160 0,14 0,14 0,2 0,28 0,35 0,35 0,45 0,45
N.3 | Aluminium cast alloys Si ( Si > 12% ) ≤ 600 N/mm² 160 0,14 0,14 0,2 0,28 0,35 0,35 0,45 0,45
N.4 | Cooper-zinc alloys, cooper-tin alloys ≤ 800 N/mm² 150 0,14 0,14 0,2 0,28 0,35 0,35 0,45 0,45
N.5 | Plastics ≤ 300 N/mm² 140 0,12 0,12 0,16 0,21 0,27 0,27 0,35 0,35

Calculations of cutting conditions

Product attributes

Clamping element

Clamping element

more +
Plain straight shank according to DIN 6535 HA.
Point angle 140°

Point angle 140°

Right helix

Right helix

Solid carbide

Solid carbide

more +
Carbide materials are characterised by high compressive strength, high hardness and therefore high wear resistance, but also limited flexural strength and toughness.
Type W

Type W

more +
For machining of soft materials, for example aluminium and non-ferrous metals.
Drilling depth 5xD

Drilling depth 5xD

With coolant holes

With coolant holes

ZrN coating

ZrN coating

more +
Coating with high corrosion resistance and high hardness with low coefficitent of friction. Ideal for machining aluminum alloys, cupper alloys or plastics.
