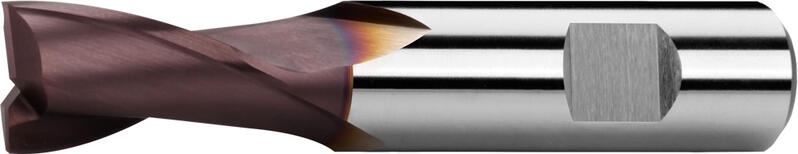

Slot drills short, 2-fluted, centre cutting, 25°, type N, Weldon shank, coating TiAlN

Home
Catalogue
Slot drills short, 2-fluted, centre cutting, 25°, type N, Weldon shank, coating TiAlN

220418 TiAlN High-speed steel HSS Co8 DIN 327K

Cutting conditions Product attributes

D e 8	d h 6	l₁	l₂	Z	Item code	On stock
1	6	47	2,5	2	220418.010 TiAlN	Yes
1,5	6	47	3	2	220418.015 TiAlN	Yes
2	6	48	4	2	220418.020 TiAlN	Yes
2,5	6	49	5	2	220418.025 TiAlN	Yes
2,8	6	49	5	2	220418.028 TiAlN	No
3	6	49	5	2	220418.030 TiAlN	Yes
3,5	6	50	6	2	220418.035 TiAlN	Yes
3,8	6	51	7	2	220418.038 TiAlN	Yes
4	6	51	7	2	220418.040 TiAlN	Yes
4,5	6	51	7	2	220418.045 TiAlN	Yes
4,8	6	52	8	2	220418.048 TiAlN	Yes
5	6	52	8	2	220418.050 TiAlN	Yes
5,5	6	52	8	2	220418.055 TiAlN	Yes
5,75	6	52	8	2	220418.0575 TiAlN	Yes
6	6	52	8	2	220418.060 TiAlN	Yes
6,5	10	60	10	2	220418.065 TiAlN	Yes
7	10	60	10	2	220418.070 TiAlN	Yes
7,5	10	60	10	2	220418.075 TiAlN	Yes
7,75	10	61	11	2	220418.0775 TiAlN	Yes
8	10	61	11	2	220418.080 TiAlN	Yes
8,5	10	61	11	2	220418.085 TiAlN	Yes
9	10	61	11	2	220418.090 TiAlN	Yes
9,5	10	61	11	2	220418.095 TiAlN	Yes
9,7	10	63	13	2	220418.097 TiAlN	Yes
10	10	63	13	2	220418.100 TiAlN	Yes
10,5	12	70	13	2	220418.105 TiAlN	Yes
11	12	70	13	2	220418.110 TiAlN	No
11,5	12	70	13	2	220418.115 TiAlN	Yes
11,7	12	70	13	2	220418.117 TiAlN	Yes
12	12	73	16	2	220418.120 TiAlN	Yes
12,5	12	73	16	2	220418.125 TiAlN	Yes
13	12	73	16	2	220418.130 TiAlN	Yes
13,5	12	73	16	2	220418.135 TiAlN	Yes
13,7	12	73	16	2	220418.137 TiAlN	No
14	12	73	16	2	220418.140 TiAlN	Yes
15	12	73	16	2	220418.150 TiAlN	Yes
16	16	79	19	2	220418.160 TiAlN	Yes
17	16	79	19	2	220418.170 TiAlN	Yes
17,7	16	79	19	2	220418.177 TiAlN	No
18	16	79	19	2	220418.180 TiAlN	Yes
19	16	79	19	2	220418.190 TiAlN	Yes
20	20	88	22	2	220418.200 TiAlN	Yes
21	20	88	22	2	220418.210 TiAlN	No
22	20	88	22	2	220418.220 TiAlN	Yes
24	25	102	26	2	220418.240 TiAlN	Yes
24,7	20	96	26	2	220418.24720 TiAlN	No
25	25	102	26	2	220418.250 TiAlN	Yes
25	20	96	26	2	220418.25020 TiAlN	Yes
26	25	102	26	2	220418.260 TiAlN	No
28	25	102	26	2	220418.280 TiAlN	Yes
28	20	96	26	2	220418.28020 TiAlN	No
30	25	102	26	2	220418.300 TiAlN	Yes
32	32	112	32	2	220418.320 TiAlN	Yes
36	32	112	32	2	220418.360 TiAlN	Yes
40	32	118	38	2	220418.40032 TiAlN	Yes

D 25, D 28, D 40 ≠ DIN 327K

Cutting conditions

Material	Strength	A_e	A_p	V_c	fz(mm/z) Ø 3	Ø 6	Ø 8	Ø 10	Ø 12	Ø 16	Ø 18	Ø 20	Ø 25	Ø 32	Ø 40
P.1 \| Free-cutting steels, general construction steels	≤ 600 N/mm²	0,5xD	1xD	67.5	0.009	0.022	0.029	0.036	0.044	0.058	0.065	0.073	0.091	0.116	0.13
P.2 \| General construction steels, steel castings	≤ 850 N/mm²	0,5xD	1xD	58.5	0.009	0.022	0.029	0.036	0.044	0.058	0.065	0.073	0.091	0.116	0.13
P.3 \| Tool steels low alloyed	≤ 1100 N/mm²	0,5xD	1xD	36	0.009	0.022	0.029	0.036	0.044	0.058	0.065	0.073	0.091	0.116	0.13
P.4 \| Heat treatable steels	≤ 900 N/mm²	0,5xD	1xD	45	0.009	0.022	0.029	0.036	0.044	0.058	0.065	0.073	0.091	0.116	0.13
P.5 \| Tool steels high alloyed	≤ 1100 N/mm²	0,5xD	1xD	36	0.009	0.022	0.029	0.036	0.044	0.058	0.065	0.073	0.091	0.116	0.13
M.2 \| Corrosion- and acid-proof steels	750 - 850 N/mm²	0,5xD	1xD	22.5	0.009	0.022	0.029	0.036	0.044	0.058	0.065	0.073	0.091	0.116	0.13
K.1 \| Cast iron (≤ 240 HB)	≤ 820 N/mm²	0,5xD	1xD	52.5	0.009	0.022	0.029	0.036	0.044	0.058	0.065	0.073	0.091	0.116	0.13
K.2 \| Cast iron (> 240 HB)	> 800 N/mm²	0,5xD	1xD	37.5	0.009	0.022	0.029	0.036	0.044	0.058	0.065	0.073	0.091	0.116	0.13

Calculations of cutting conditions

Product attributes

Clamping element

more +

Straight shank with clamping flat (Weldon) according to DIN 1835 B.

Tool geometry

more +

Helix angle = 25°. Rake angle = 12°.

Material HSS Co8

more +

Extra high performance high speed steel with good toughness and great temperature resistance. It is applicable especially for milling of materials with high strength, austenitic steels, steels for warm working, etc.

Type N

more +

Universal usage. Suitable for materials up to strength 900 MPa.

Feed direction possibility

TiAlN coating.

more +

Its advantage is in high hardness in higher temperaures, good oxidation resistance and low temperature conductivity. Universal usage with emphasis on high-speed miling without cooling. Siutable for milling of hard materials.
