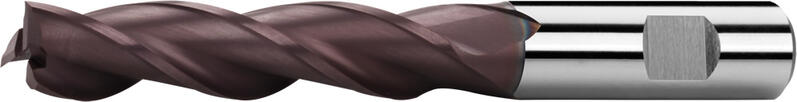

Slot drills extra long, 3 fluted, centre cutting, 30°, type N, Weldon shank, coating TiAlN
|
D
e 8 |
d
h 6 | l1 | l2 | Z | Item code | On stock |
|---|---|---|---|---|---|---|
| 2 | 6 | 54 | 10 | 3 | 233418.020 TiAlN | Yes |
| 3 | 6 | 56 | 12 | 3 | 233418.030 TiAlN | Yes |
| 4 | 6 | 63 | 19 | 3 | 233418.040 TiAlN | Yes |
| 5 | 6 | 68 | 24 | 3 | 233418.050 TiAlN | Yes |
| 6 | 6 | 68 | 24 | 3 | 233418.060 TiAlN | Yes |
| 8 | 10 | 88 | 38 | 3 | 233418.080 TiAlN | No |
| 10 | 10 | 95 | 45 | 3 | 233418.100 TiAlN | Yes |
| 12 | 12 | 110 | 53 | 3 | 233418.120 TiAlN | Yes |
| 14 | 12 | 110 | 53 | 3 | 233418.140 TiAlN | Yes |
| 16 | 16 | 123 | 63 | 3 | 233418.160 TiAlN | Yes |
| 18 | 16 | 123 | 63 | 3 | 233418.180 TiAlN | Yes |
| 20 | 20 | 141 | 75 | 3 | 233418.200 TiAlN | Yes |
| 22 | 20 | 141 | 75 | 3 | 233418.220 TiAlN | Yes |
| 25 | 25 | 166 | 90 | 3 | 233418.250 TiAlN | Yes |
Cutting conditions
Material |
Strength |
Ae |
Ap |
Vc |
fz(mm/z) Ø 3 |
Ø 6 |
Ø 8 |
Ø 10 |
Ø 12 |
Ø 16 |
Ø 18 |
Ø 20 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P.1 | Free-cutting steels, general construction steels | ≤ 600 N/mm² | 0,5xD | 1xD | 67.5 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 |
| P.2 | General construction steels, steel castings | ≤ 850 N/mm² | 0,5xD | 1xD | 58.5 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 |
| P.3 | Tool steels low alloyed | ≤ 1100 N/mm² | 0,5xD | 1xD | 36 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 |
| P.4 | Heat treatable steels | ≤ 900 N/mm² | 0,5xD | 1xD | 45 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 |
| M.2 | Corrosion- and acid-proof steels | 750 - 850 N/mm² | 0,5xD | 1xD | 22.5 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 |
| K.1 | Cast iron (≤ 240 HB) | ≤ 820 N/mm² | 0,5xD | 1xD | 52.5 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 |
| K.2 | Cast iron (> 240 HB) | > 800 N/mm² | 0,5xD | 1xD | 37.5 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 |
| N.2 | Aluminium cast alloys Si (Si ≤ 12%) | ≤ 600 N/mm² | 0,5xD | 1xD | 240-450 | 0.0117 | 0.0286 | 0.0377 | 0.0468 | 0.0572 | 0.0754 | 0.0845 | 0.0949 |
| S.2 | Titanium, Titanium alloys | ≤ 1250 N/mm² | 0,5xD | 1xD | 18 | 0.0063 | 0.0154 | 0.0203 | 0.0252 | 0.0308 | 0.0406 | 0.0455 | 0.0511 |
Calculations of cutting conditions
Product attributes
Straight shank with clamping flat (Weldon) according to DIN 1835 B.
Universal usage. Suitable for materials up to strength 900 MPa.
Feed direction possibility
Its advantage is in high hardness in higher temperaures, good oxidation resistance and low temperature conductivity. Universal usage with emphasis on high-speed miling without cooling. Siutable for milling of hard materials.
Company norm
Helix angle = 30°.
Rake angle = 12°.
Extra high performance high speed steel with good toughness and great temperature resistance. It is applicable especially for milling of materials with high strength, austenitic steels, steels for warm working, etc.
