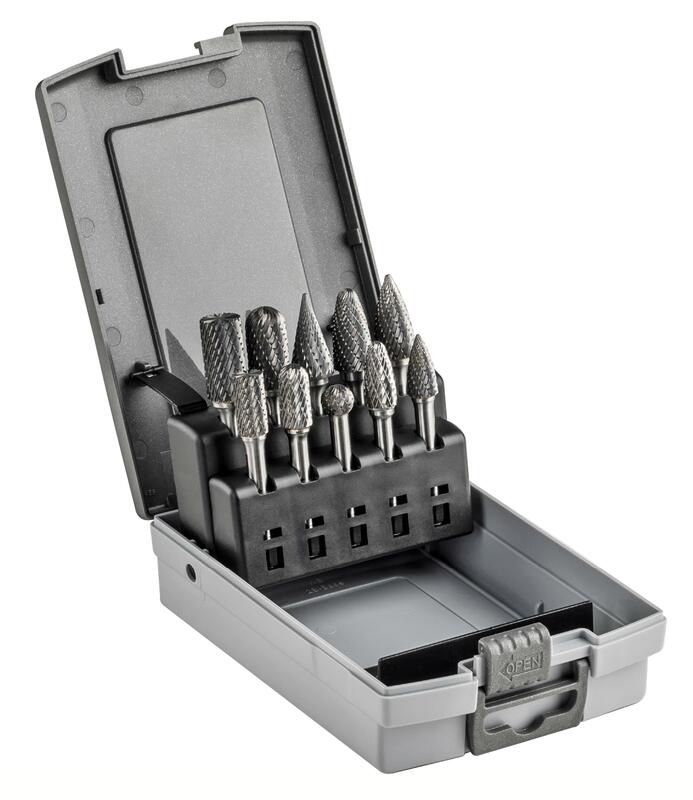

T1X02 SET Solid carbide (SC)
Clamping element
Type MX
Feed direction possibility
Solid carbide
Item code On stock
T1X02.01 SET Yes
T1X02.02 SET Yes

Content of set

Code D d l1 l2 DIN T1X02.01 SET
T1002MX.100 10 6 65 20 ZYA-S
T1002MX.120 12 6 70 25 ZYA-S
T1102MX.100 10 6 65 20 WRC
T1102MX.120 12 6 70 25 WRC
T1202MX.100 10 6 65 20 SPG
T1202MX.120 12 6 70 25 SPG
T1302MX.100 10 6 65 20 RBF
T1302MX.120 12 6 70 25 RBF
T1402MX.100 10 6 53 8 KUD
T1502MX.120 12 6 67 25 SKM

Cutting conditions


Material

Strength
P.1 | Free-cutting steels, general construction steels ≤ 600 N/mm²
P.2 | General construction steels, steel casting ≤ 850 N/mm²
P.3 | Tool steels low alloyed ≤ 1100 N/mm²
P.4 | Heat treatable steels ≤ 900 N/mm²
P.5 | Tool steels low alloyed ≤ 1100 N/mm²
P.6 | Tool and treated steels > 1100 N/mm²
K.1 | Cast iron (≤ 240 HB) ≤ 820 N/mm²
K.2 | Cast iron (> 240 HB) > 800 N/mm²
N.1 | Aluminium, aluminium cast alloys (Si ≤ 6%) ≤ 400 N/mm²
N.2 | Aluminium cast alloys (Si ≤ 12%) ≤ 600 N/mm²
N.3 | Aluminium cast alloys (Si > 12%) ≤ 600 N/mm²
N.4 | Cooper-zinc alloys, cooper-tin alloys ≤ 800 N/mm²
S.1 | Chrome-nickle alloys ≤ 1500 N/mm²
S.2 | Titanium, titanium cast alloys ≤ 1250 N/mm²

Calculations of cutting conditions

Product attributes

Clamping element

Clamping element

more +
Plain straight shank according to DIN 1835 A.
Feed direction possibility

Feed direction possibility

Type MX

Type MX

more +
Blade type MX (cross toothing) is a versatile alternative for both soft and hard materials. Its design reduces tool chatter and chip breakage into gritty shapes. These smaller chips also help eliminate groove loading.
Solid carbide

Solid carbide

more +
Carbide materials are characterised by high compressive strength, high hardness and therefore high wear resistance, but also limited flexural strength and toughness.
