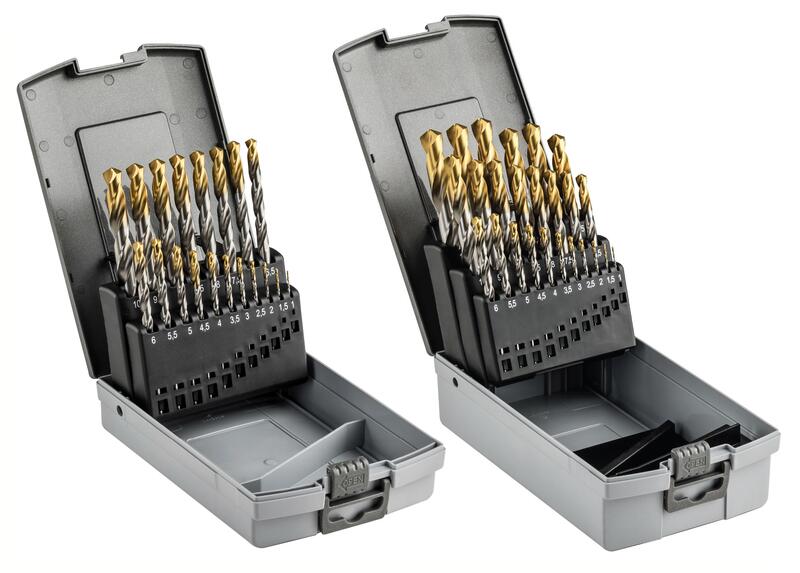

VN10010 TIN SET High-speed steel HSS DIN 338
Tool geometry
Point shape - form N
Point angle 118°
Drilling depth 5xD
Right helix
Material HSS
TiN coating

Content of set

Item code D l1 l2 VN10010.04 SET-TIN VN10010.05 SET-TIN
VN10010.0100 TIN 1 34 12
VN10010.0150 TIN 1,5 40 18
VN10010.0200 TIN 2 49 24
VN10010.0250 TIN 2,5 57 30
VN10010.0300 TIN 3 61 33
VN10010.0350 TIN 3,5 70 39
VN10010.0400 TIN 4 75 43
VN10010.0450 TIN 4,5 80 47
VN10010.0500 TIN 5 86 52
VN10010.0550 TIN 5,5 93 57
VN10010.0600 TIN 6 93 57
VN10010.0650 TIN 6,5 101 63
VN10010.0700 TIN 7 109 69
VN10010.0750 TIN 7,5 109 69
VN10010.0800 TIN 8 117 75
VN10010.0850 TIN 8,5 117 75
VN10010.0900 TIN 9 125 81
VN10010.0950 TIN 9,5 125 81
VN10010.1000 TIN 10 133 87
VN10010.1050 TIN 10,5 133 87
VN10010.1100 TIN 11 142 94
VN10010.1150 TIN 11,5 142 94
VN10010.1200 TIN 12 151 101
VN10010.1250 TIN 12,5 151 101
VN10010.1300 TIN 13 151 101

Cutting conditions


Material

Strength
P.1 | Free-cutting steels, general construction steels ≤ 600 N/mm²
P.2 | General construction steels, steel castings ≤ 850 N/mm²
K.1 | Cast iron (≤ 240 HB) ≤ 820 N/mm²
K.2 | Cast iron (> 240 HB) > 800 N/mm²
N.1 | Aluminium, Aluminium cast alloys Si (Si ≤ 6%) ≤ 400 N/mm²
N.2 | Aluminium cast alloys Si (Si ≤ 12%) ≤ 600 N/mm²
N.3 | Aluminium cast alloys Si (Si > 12%) ≤ 600 N/mm²
N.4 | Cooper-zinc alloys, cooper-tin alloys ≤ 800 N/mm²

Calculations of cutting conditions

Product attributes

Tool geometry

Tool geometry

more +
Lead of helix 25° - 30°.
Point angle 118°

Point angle 118°

Right helix

Right helix

TiN coating

TiN coating

more +
Standard, universal hard layer. In comparison with uncoated tools it provides 300-400% increase in tool life. We recommend cooling.
Point shape - form N

Point shape - form N

more +
Conical lip relief, DIN 1412 form N.
Drilling depth 5xD

Drilling depth 5xD

Material HSS

Material HSS

more +
High speed steel of average performance, it is applicable especially for cutters of smaller diameters and for milling of materials up to the strength of 900 MPa.
