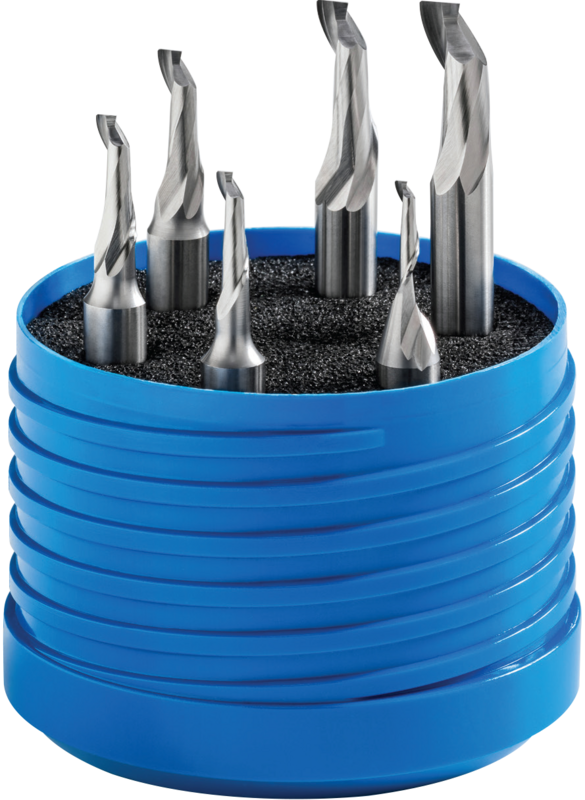

- Set of end mills short, 1 tooth cut over centre, 30°, type W, plain shank
100405 SET
High-speed steel HSS Co5
Content of set
Code |
D |
d |
l1 |
l2 |
Z |
100405.01 SET |
100405.030 |
3 |
8 |
60 |
10 |
1 |
• |
100405.040 |
4 |
8 |
60 |
12 |
1 |
• |
100405.050 |
5 |
8 |
60 |
14 |
1 |
• |
100405.060 |
6 |
8 |
60 |
14 |
1 |
• |
100405.080 |
8 |
8 |
80 |
14 |
1 |
• |
100405.100 |
10 |
8 |
80 |
14 |
1 |
• |
Cutting conditions
Material |
Strength |
Ap |
Ae |
Vc |
fz(mm/z)
Ø 3 |
Ø 6 |
Ø 8 |
Ø 10 |
Ø 12 |
N.2 | Aluminium cast alloys Si (Si ≤ 12%) |
≤ 600 N/mm² |
1,5xD |
0,5xD |
160-260 |
0.008 |
0.018 |
0.024 |
0.03 |
0.033 |
Calculations of cutting conditions
Product attributes
Plain straight shank according to DIN 1835 A.
Helix angle = 30°.
Rake angle = 20°.
Very high performance high speed steel with good toughness for milling cutters and for milling of materials up to the strength of 1200 MPa.
For machining of soft materials, for example aluminium and non-ferrous metals.
Feed direction possibility
