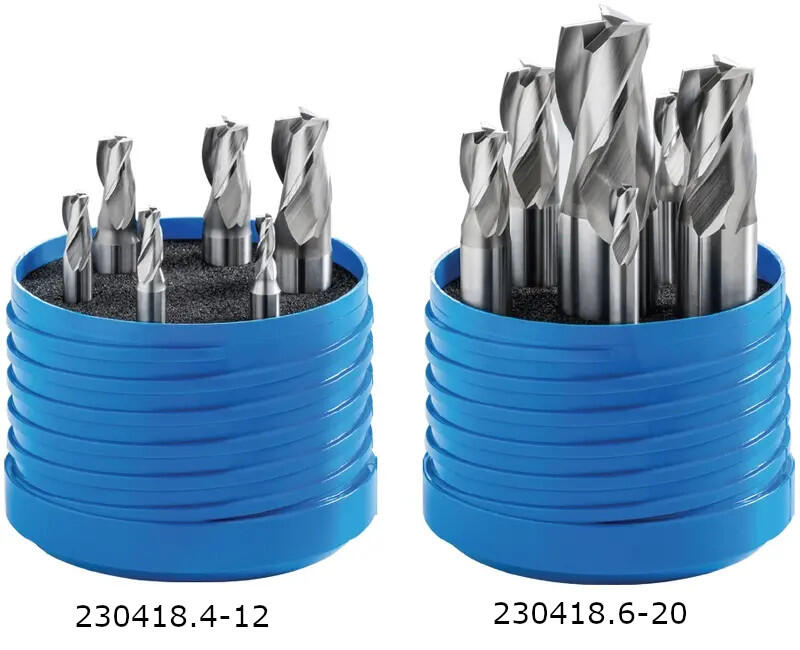

Set of end mills, short, 3-fluted, λ 30°, type N, weldon shank
Item code | On stock |
---|---|
230418.4-12 SET | Yes |
230418.4-12 TIALN SET | No |
230418.6-20 SET | Yes |
230418.6-20 TiAlN SET | No |
Content of set
230418.4-12 SET
Item code | D e 8 |
d h 6 |
l1 | l2 | Z |
230418.040 | 4 | 6 | 51 | 7 | 3 |
230418.050 | 5 | 6 | 52 | 8 | 3 |
230418.060 | 6 | 6 | 52 | 8 | 3 |
230418.080 | 8 | 10 | 61 | 11 | 3 |
230418.100 | 10 | 10 | 63 | 13 | 3 |
230418.120 | 12 | 12 | 73 | 16 | 3 |
230418.6-20 SET
Item code | D e 8 |
d h 6 |
l1 | l2 | Z |
230418.060 | 6 | 6 | 52 | 8 | 3 |
230418.080 | 8 | 10 | 61 | 11 | 3 |
230418.100 | 10 | 10 | 63 | 13 | 3 |
230418.120 | 12 | 12 | 73 | 16 | 3 |
230418.160 | 16 | 16 | 79 | 19 | 3 |
230418.200 | 20 | 20 | 88 | 22 | 3 |
Cutting conditions
Material |
Strength |
Ap |
Ae |
Vc |
fz(mm/z) Ø 3 |
Ø 6 |
Ø 8 |
Ø 10 |
Ø 12 |
Ø 16 |
Ø 18 |
Ø 20 |
Ø 25 |
Ø 32 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
P.1 | Free-cutting steels, general construction steels | ≤ 600 N/mm² | 0,5xD | 1xD | 45 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 | 0.091 | 0.116 |
P.2 | General construction steels, steel castings | ≤ 850 N/mm² | 0,5xD | 1xD | 39 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 | 0.091 | 0.116 |
P.3 | Tool steels low alloyed | ≤ 1100 N/mm² | 0,5xD | 1xD | 24 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 | 0.091 | 0.116 |
P.4 | Heat treatable steels | ≤ 900 N/mm² | 0,5xD | 1xD | 30 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 | 0.091 | 0.116 |
M.2 | Corrosion- and acid-proof steels | 750 - 850 N/mm² | 0,5xD | 1xD | 15 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 | 0.091 | 0.116 |
K.1 | Cast iron (≤ 240 HB) | ≤ 820 N/mm² | 0,5xD | 1xD | 35 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 | 0.091 | 0.116 |
K.2 | Cast iron (> 240 HB) | > 800 N/mm² | 0,5xD | 1xD | 25 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 | 0.091 | 0.116 |
N.2 | Aluminium cast alloys Si (Si ≤ 12%) | ≤ 600 N/mm² | 0,5xD | 1xD | 160-300 | 0.0117 | 0.0286 | 0.0377 | 0.0468 | 0.0572 | 0.0754 | 0.0845 | 0.0949 | 0.1183 | 0.1508 |
N.4 | Copper–zinc alloys, copper–tin alloys | ≤ 800 N/mm² | 0,5xD | 1xD | 80-120 | 0.009 | 0.022 | 0.029 | 0.036 | 0.044 | 0.058 | 0.065 | 0.073 | 0.091 | 0.116 |
S.2 | Titanium, Titanium alloys | ≤ 1250 N/mm² | 0,5xD | 1xD | 12 | 0.0063 | 0.0154 | 0.0203 | 0.0252 | 0.0308 | 0.0406 | 0.0455 | 0.0511 | 0.0637 | 0.0812 |
Calculations of cutting conditions
Product attributes
Clamping element
more +Straight shank with clamping flat (Weldon) according to DIN 1835 B.
Tool geometry
more +Helix angle = 30°.
Rake angle = 12°.
Material HSS Co8
more +Extra high performance high speed steel with good toughness and great temperature resistance. It is applicable especially for milling of materials with high strength, austenitic steels, steels for warm working, etc.
Type N
more +Universal usage. Suitable for materials up to strength 900 MPa.
Feed direction possibility
TiAlN coating.
more +Its advantage is in high hardness in higher temperaures, good oxidation resistance and low temperature conductivity. Universal usage with emphasis on high-speed miling without cooling. Siutable for milling of hard materials.
