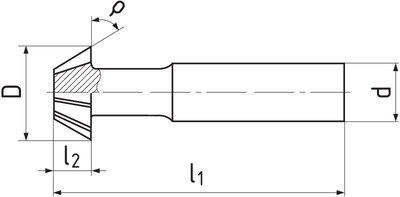

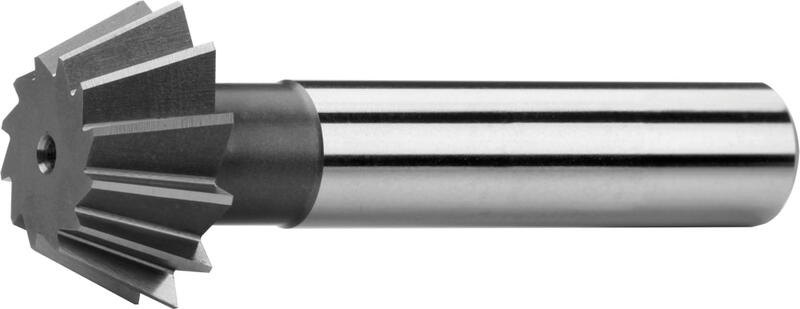

Inverted dovetail milling cutters, plain shank
ϱ
±30' |
D
js 16 |
d
h 6 | l1 | l2 | Z | Item code | On stock |
---|---|---|---|---|---|---|---|
45 | 16 | 12 | 60 | 4 | 10 | 350005.045160 | Yes |
45 | 20 | 12 | 63 | 5 | 10 | 350005.045200 | Yes |
45 | 25 | 12 | 67 | 6,3 | 10 | 350005.045250 | Yes |
45 | 32 | 16 | 71 | 8 | 12 | 350005.045320 | Yes |
45 | 40 | 16 | 80 | 10 | 12 | 350005.045400 | Yes |
60 | 16 | 12 | 60 | 6,3 | 10 | 350005.060160 | Yes |
60 | 20 | 12 | 63 | 8 | 10 | 350005.060200 | Yes |
60 | 25 | 12 | 67 | 10 | 10 | 350005.060250 | Yes |
60 | 32 | 12 | 71 | 12,5 | 12 | 350005.060320 | Yes |
70 | 16 | 12 | 60 | 7 | 10 | 350005.070160 | Yes |
70 | 20 | 12 | 63 | 9 | 10 | 350005.070200 | Yes |
70 | 25 | 16 | 67 | 11 | 10 | 350005.070250 | Yes |
75 | 16** | 12 | 60 | 8 | 10 | 350005.075160 | Yes |
75 | 25** | 12 | 67 | 10 | 12 | 350005.075250 | Yes |
**) On demand
Cutting conditions
Material |
Strength |
Ap |
Ae |
Vc |
fz(mm/z) Ø 16 |
Ø 20 |
Ø 25 |
Ø 32 |
Ø 36 |
Ø 40 |
---|---|---|---|---|---|---|---|---|---|---|
P.1 | Free-cutting steel, general construction steels | ≤ 600 N/mm² | 1xl2 | 0,2xD | 28 | 0.011 | 0.014 | 0.018 | 0.022 | 0.025 | 0.028 |
P.2 | General construction steels, steel casting | ≤ 850 N/mm² | 1xl2 | 0,2xD | 24 | 0.01 | 0.012 | 0.015 | 0.019 | 0.022 | 0.024 |
P.3 | Tools steels low alloyed | ≤ 1100 N/mm² | 1xl2 | 0,2xD | 18 | 0.01 | 0.012 | 0.015 | 0.019 | 0.022 | 0.024 |
N.2 | Aluminium cast alloys Si (Si ≤ 12%) | ≤ 600 N/mm² | 1xl2 | 0,2xD | 41 | 0.011 | 0.014 | 0.018 | 0.022 | 0.025 | 0.028 |
S.2 | Titanium, titanium alloys | ≤ 1250 N/mm² | 1xl2 | 0,2xD | 9 | 0.007 | 0.08 | 0.011 | 0.013 | 0.015 | 0.017 |
Calculations of cutting conditions
Product attributes
Clamping element
more +Plain straight shank according to DIN 1835 A.
Cutting edges on the perimeter of the angle cutter
Material HSS Co5
more +Very high performance high speed steel with good toughness for milling cutters and for milling of materials up to the strength of 1200 MPa.
Tool geometry
more +Helix angle = 0°.
Rake angle = 0°.
