S531602E AlCrN Solid carbide (SC)
Clamping element
Type N
Tool geometry
Feed direction possibility
Solid carbide
AlCrN coating

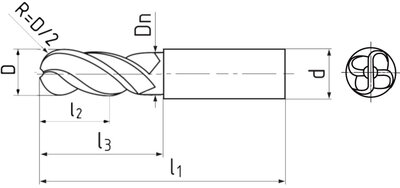

D
h 10
d
h 6
l1 l2 l3 Dn Z Item code On stock
2 6 62 3 7 1,9 4 S531602E.020 AlCrN No
3 6 62 4 9,5 2,8 4 S531602E.030 AlCrN Yes
4 6 62 5 12 3,8 4 S531602E.040 AlCrN Yes
5 6 80 6 14,5 5,8 4 S531602E.050 AlCrN No
6 6 80 7 17 5,7 4 S531602E.060 AlCrN Yes
8 8 90 9 22 7,6 4 S531602E.080 AlCrN Yes
10 10 100 11 27 9,5 4 S531602E.100 AlCrN Yes
12 12 120 13 32 11,5 4 S531602E.120 AlCrN No
14 14 120 15 37 13,5 4 S531602E.140 AlCrN No
16 16 140 17 42 15,5 4 S531602E.160 AlCrN No
18 18 140 19 47 14,5 4 S531602E.180 AlCrN No
20 20 160 21 52 19,5 4 S531602E.200 AlCrN No

Cutting conditions


Material

Strength

Ae

Ap

Vc
fz(mm/z)
Ø 3

Ø 6

Ø 8

Ø 10

Ø 12

Ø 16

Ø 18

Ø 20
P.1 | Free-cutting steels, general construction steels ≤ 600 N/mm² 0,1xD 0,05xD 210 0.03 0.06 0.08 0.1 0.12 0.16 0.18 0.2
P.3 | Tool steels low alloyed ≤ 1100 N/mm² 0,1xD 0,05xD 175 0.03 0.06 0.08 0.1 0.12 0.16 0.18 0.2
P.5 | Tool steels high alloyed ≤ 1100 N/mm² 0,1xD 0,05xD 140 0.03 0.06 0.08 0.1 0.12 0.16 0.18 0.2
K.1 | Cast iron (≤ 240 HB) ≤ 820 N/mm² 0,1xD 0,05xD 150 0.03 0.06 0.08 0.1 0.12 0.16 0.18 0.2
K.2 | Cast iron (> 240 HB) > 800 N/mm² 0,1xD 0,05xD 110 0.03 0.06 0.08 0.1 0.12 0.16 0.18 0.2
S.1 | Chrome-nickel alloys ≤ 1500 N/mm² 0,1xD 0,05xD 50 0.03 0.06 0.08 0.1 0.12 0.16 0.18 0.2
S.2 | Titanium, Titanium alloys ≤ 1250 N/mm² 0,1xD 0,05xD 70 0.03 0.06 0.08 0.1 0.12 0.16 0.18 0.2
H.1 | Hardened materials (< 54 HRC) ≤ 1920 N/mm² 0,1xD 0,05xD 120 0.03 0.06 0.08 0.1 0.12 0.16 0.18 0.2
H.2 | Hardened materials (54-60 HRC) 1920 - 2210 N/mm² 0,1xD 0,05xD 100 0.03 0.06 0.08 0.1 0.12 0.16 0.18 0.2

Calculations of cutting conditions

Product attributes

Clamping element

Clamping element

more +
Plain straight shank according to DIN 6535 HA.
Tool geometry

Tool geometry

more +
Helix angle = 30°. Rake angle = 6°.
Solid carbide

Solid carbide

more +
Carbide materials are characterised by high compressive strength, high hardness and therefore high wear resistance, but also limited flexural strength and toughness.
Type N

Type N

more +
Universal usage. Suitable for materials up to strength 900 MPa.
Feed direction possibility

Feed direction possibility

AlCrN coating

AlCrN coating

more +
Coating with very high wear resistance and excellent hot hardness.
