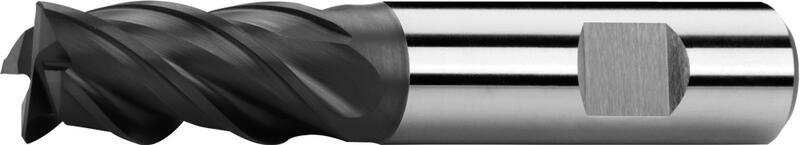

140617X AlTiN High-speed steel HSSE-PM DIN 844K
Clamping element
Type N
Tool geometry.
Feed direction possibility
Material HSSE-PM
Coating AlTiN

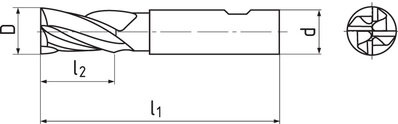

D
k 10
d
h 6
l1 l2 Z Item code On stock
6 6 57 13 4 140617X.060 AlTiN Yes
8 10 69 19 4 140617X.080 AlTiN Yes
10 10 72 22 4 140617X.100 AlTiN Yes
12 12 83 26 4 140617X.120 AlTiN Yes
16 16 92 32 4 140617X.160 AlTiN Yes
20 20 104 38 4 140617X.200 AlTiN Yes

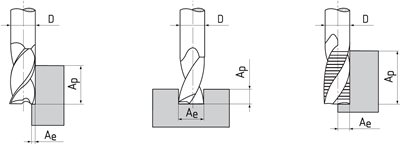

Cutting conditions


Material

Strength

Ap

Ae

Vc
fz(mm/z)
Ø 6

Ø 8

Ø 10

Ø 12

Ø 16

Ø 20
P.1 | Free-cutting steels, general construction steels ≤ 600 N/mm² 1,5xD 0,2xD 65 0.02 0.027 0.038 0.044 0.054 0.065
P.2 | General construction steels, steel castings ≤ 850 N/mm² 1,5xD 0,2xD 65 0.02 0.027 0.038 0.044 0.054 0.065
P.3 | Tool steels low alloyed ≤ 1100 N/mm² 1,5xD 0,15xD 55 0.018 0.024 0.03 0.036 0.042 0.053
P.4 | Heat treatable steels ≤ 900 N/mm² 1,5xD 0,15xD 55 0.018 0.024 0.03 0.036 0.042 0.053
P.5 | Tool steels high alloyed ≤ 1100 N/mm² 1,5xD 0,15xD 55 0.018 0.024 0.03 0.036 0.042 0.053
P.6 | Tool and treated steels > 1100 N/mm² 1,5xD 0,15xD 55 0.018 0.024 0.03 0.036 0.042 0.053
M.1 | Corrosion- and acid-proof steels ≤ 750 N/mm² 1,5xD 0,15xD 50 0.018 0.024 0.03 0.036 0.042 0.054
M.2 | Corrosion- and acid-proof steels 750 - 850 N/mm² 1,5xD 0,1xD 40 0.018 0.024 0.03 0.036 0.042 0.054
M.3 | Corrosion- and acid-proof steels > 850 N/mm² 1,5xD 0,1xD 40 0.018 0.024 0.03 0.036 0.042 0.054
K.2 | Cast iron (> 240 HB) > 800 N/mm² 1,5xD 0,2xD 55 0.023 0.03 0.041 0.049 0.06 0.071

Calculations of cutting conditions

Product attributes

Clamping element

Clamping element

more +
Straight shank with clamping flat (Weldon) according to DIN 1835 B.
Tool geometry.

Tool geometry.

more +
Helix angle = 38/42°. Rake angle = 10°.
Material HSSE-PM

Material HSSE-PM

more +
Extra high performance high speed steel produced by powder metallurgy. It has a homogeneous structure resulting in higher dimension stability and longer tool life. It is applicable for machining of materials with very high strength and materials hard to machine, such as Titanium and its alloys. The milling cutters made from this material are delivered with AlTiN coating as a standard.
Type N

Type N

more +
Universal usage. Suitable for materials up to strength 900 MPa.
Feed direction possibility

Feed direction possibility

Coating AlTiN

Coating AlTiN

more +
Offers similar qualities as TiAlN, but even higher hardness. Substanial temperature stability. Designed for the most demanding applications. It provides excellent result mainly when combined with HSSE-PM steels (ASP 2030). The milling cutters manufactured from this steel are coated with AlTiN as standard.
