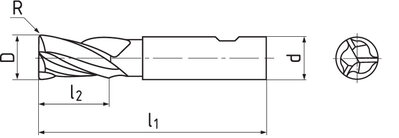

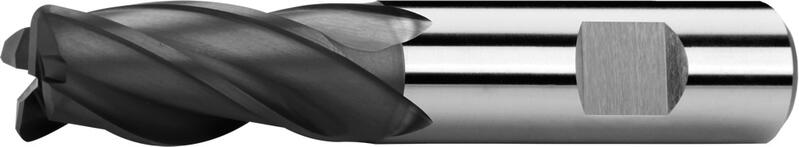

End mills with corner radius, 30°, type N, Weldon shank, coating AlTiN
|
D
k 12 |
d
h 6 | l1 | l2 | R | Z | Item code | On stock |
|---|---|---|---|---|---|---|---|
| 6 | 6 | 57 | 16 | 1 | 4 | 120517R.060010 AlTiN | Yes |
| 6 | 6 | 57 | 16 | 2 | 4 | 120517R.060020 AlTiN | Yes |
| 10 | 10 | 72 | 22 | 1 | 4 | 120517R.100010 AlTiN | Yes |
| 10 | 10 | 72 | 22 | 2 | 4 | 120517R.100020 AlTiN | Yes |
| 12 | 12 | 83 | 25 | 1 | 4 | 120517R.120010 AlTiN | Yes |
| 12 | 12 | 83 | 25 | 2 | 4 | 120517R.120020 AlTiN | Yes |
| 16 | 16 | 92 | 32 | 2 | 4 | 120517R.160020 AlTiN | Yes |
| 16 | 16 | 92 | 32 | 4 | 4 | 120517R.160040 AlTiN | Yes |
| 20 | 20 | 104 | 38 | 2 | 4 | 120517R.200020 AlTiN | Yes |
| 20 | 20 | 104 | 38 | 4 | 4 | 120517R.200040 AlTiN | Yes |
l2 16, l2 25 ≠ DIN 844K
Cutting conditions
Material |
Strength |
Ae |
Ap |
Vc |
fz(mm/z) Ø 6 |
Ø 8 |
Ø 10 |
Ø 12 |
Ø 16 |
Ø 20 |
|---|---|---|---|---|---|---|---|---|---|---|
| P.1 | Free-cutting steels, general construction steels | ≤ 600 N/mm² | 1xD | 0,1xD | 78 | 0.03 | 0.036 | 0.043 | 0.051 | 0.068 | 0.085 |
| P.3 | Tool steels low alloyed | ≤ 1100 N/mm² | 1xD | 0,1xD | 51 | 0.03 | 0.036 | 0.043 | 0.051 | 0.068 | 0.085 |
| P.6 | Tool and treated steels | > 1100 N/mm² | 1xD | 0,1xD | 20 | 0.021 | 0.025 | 0.031 | 0.036 | 0.048 | 0.06 |
| M.3 | Corrosion- and acid-proof steels | > 850 mm² | 1xD | 0,1xD | 37 | 0.03 | 0.036 | 0.043 | 0.051 | 0.081 | 0.111 |
| N.1 | Aluminium, Aluminium cast alloys Si (Si ≤ 6%) | ≤ 400 N/mm² | 1xD | 0,1xD | 130 | 0.039 | 0.047 | 0.056 | 0.066 | 0.088 | 0.111 |
| N.4 | Cooper-zinc alloys, cooper-tin alloys | ≤ 800 N/mm² | 1xD | 0,1xD | 70 | 0.03 | 0.036 | 0.043 | 0.051 | 0.081 | 0.111 |
| S.1 | Chrome-nickel alloys | ≤ 1500 N/mm² | 1xD | 0,1xD | 23 | 0.03 | 0.036 | 0.043 | 0.051 | 0.081 | 0.111 |
| S.2 | Titanium, Titanium alloys | ≤ 1250 N/mm² | 1xD | 0,1xD | 23 | 0.021 | 0.025 | 0.031 | 0.036 | 0.048 | 0.06 |
Calculations of cutting conditions
Product attributes
Straight shank with clamping flat (Weldon) according to DIN 1835 B.
Helix angle = 30°.
Rake angle = 12°.
End face design - radius
Offers similar qualities as TiAlN, but even higher hardness. Substanial temperature stability. Designed for the most demanding applications. It provides excellent result mainly when combined with HSSE-PM steels (ASP 2030). The milling cutters manufactured from this steel are coated with AlTiN as standard.
Universal usage. Suitable for materials up to strength 900 MPa.
