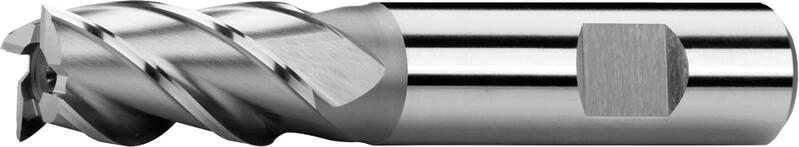

End mills short, 40°/35°, type N, Weldon shank
D
k 10 |
d
h 6 | l1 | l2 | λ | Z | Item code | On stock |
---|---|---|---|---|---|---|---|
6 | 6 | 57 | 13 | 40 | 4 | 140218.060 | Yes |
7 | 10 | 66 | 16 | 40 | 4 | 140218.070 | Yes |
8 | 10 | 69 | 19 | 40 | 4 | 140218.080 | No |
9 | 10 | 69 | 19 | 40 | 4 | 140218.090 | No |
10 | 10 | 72 | 22 | 40 | 4 | 140218.100 | Yes |
11 | 12 | 79 | 22 | 40 | 4 | 140218.110 | Yes |
12 | 12 | 83 | 26 | 40 | 4 | 140218.120 | Yes |
13 | 12 | 83 | 26 | 40 | 4 | 140218.130 | Yes |
14 | 12 | 83 | 26 | 40 | 4 | 140218.140 | Yes |
14 | 12 | 83 | 26 | 40 | 4 | 140218.150 | Yes |
16 | 16 | 92 | 32 | 40 | 4 | 140218.160 | Yes |
17 | 16 | 92 | 32 | 40 | 4 | 140218.170 | Yes |
18 | 16 | 92 | 32 | 40 | 4 | 140218.180 | No |
19 | 16 | 92 | 32 | 40 | 4 | 140218.190 | No |
20 | 20 | 104 | 38 | 40 | 4 | 140218.200 | No |
21 | 20 | 104 | 38 | 35 | 5 | 140218.210 | Yes |
22 | 20 | 104 | 38 | 35 | 5 | 140218.220 | No |
24 | 25 | 121 | 45 | 35 | 5 | 140218.240 | Yes |
25 | 25 | 121 | 45 | 35 | 5 | 140218.250 | Yes |
28 | 25 | 121 | 45 | 35 | 5 | 140218.280 | Yes |
30 | 25 | 121 | 45 | 35 | 6 | 140218.300 | Yes |
32 | 32 | 133 | 53 | 35 | 6 | 140218.320 | Yes |
36 | 32 | 133 | 53 | 35 | 6 | 140218.360 | Yes |
40 | 32 | 143 | 63 | 35 | 6 | 140218.40032 | Yes |
D 40 ≠ DIN 844K
Cutting conditions
Material |
Strength |
Ap |
Ae |
Vc |
fz(mm/z) Ø 3 |
Ø 6 |
Ø 8 |
Ø 10 |
Ø 12 |
Ø 16 |
Ø 18 |
Ø 20 |
Ø 25 |
Ø 32 |
Ø 40 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
P.1 | Free-cutting steels, general construction steels | ≤ 600 N/mm² | 1xD | 0,1xD | 45 | 0.006 | 0.015 | 0.021 | 0.028 | 0.034 | 0.044 | 0.051 | 0.057 | 0.071 | 0.091 | 0.11 |
P.2 | General construction steels, steel castings | ≤ 850 N/mm² | 1xD | 0,1xD | 39 | 0.006 | 0.015 | 0.021 | 0.028 | 0.034 | 0.044 | 0.051 | 0.057 | 0.071 | 0.091 | 0.11 |
P.3 | Tool steels low alloyed | ≤ 1100 N/mm² | 1xD | 0,1xD | 24 | 0.006 | 0.015 | 0.021 | 0.028 | 0.034 | 0.044 | 0.051 | 0.057 | 0.071 | 0.091 | 0.11 |
P.4 | Heat treatable steels | ≤ 900 N/mm² | 1xD | 0,1xD | 30 | 0.006 | 0.015 | 0.021 | 0.028 | 0.034 | 0.044 | 0.051 | 0.057 | 0.071 | 0.091 | 0.11 |
P.5 | Tool steels high alloyed | ≤ 1100 N/mm² | 1xD | 0,1xD | 24 | 0.006 | 0.015 | 0.021 | 0.028 | 0.034 | 0.044 | 0.051 | 0.057 | 0.071 | 0.091 | 0.11 |
Calculations of cutting conditions
Product attributes
Clamping element
more +Straight shank with clamping flat (Weldon) according to DIN 1835 B.
Tool geometry
more +Helix angle = 35°.
Rake angle = 12°.
Feed direction possibility
Type N
more +Universal usage. Suitable for materials up to strength 900 MPa.
Tool geometry
more +Helix angle = 40°.
Rake angle = 12°.
Material HSS Co8
more +Extra high performance high speed steel with good toughness and great temperature resistance. It is applicable especially for milling of materials with high strength, austenitic steels, steels for warm working, etc.
