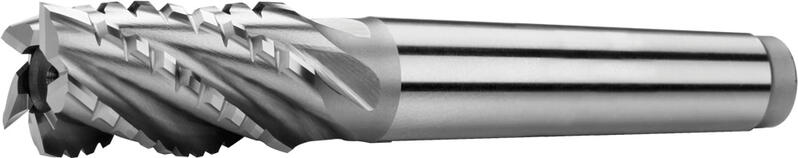

Tapper shank end mills short, semicoarse teeth, 35°, type CB

422245 High-speed steel HSS Co5 DIN 845

D k 10	MK	l₁	l₂	Z	Item code	On stock
10	1	92	22	4	422245.100	Yes
12	1	96	26	4	422245.120	Yes
14	2	111	26	4	422245.140	No
16	2	117	32	4	422245.160	Yes
18	2	117	32	4	422245.180	Yes
20	2	123	38	4	422245.200	Yes
22	2	123	38	5	422245.220	No
25	3	147	45	5	422245.250	Yes
28	3	147	45	5	422245.280	Yes
30	3	147	45	6	422245.300	Yes
32	4	178	53	6	422245.320	Yes
36	4	178	53	6	422245.360	No
40	4	188	63	6	422245.400	Yes
45	4	188	63	6	422245.450	Yes
50	5	233	75	6	422245.500	Yes
56	5	233	75	8	422245.560	Yes
63	5	248	90	8	422245.630	No

Cutting conditions

Material	Strength	A_p	A_e	V_c	fz(mm/z) Ø 10	Ø 16	Ø 20	Ø 25	Ø 32	Ø 40	Ø 50	Ø 63
P.1 \| Free-cutting steels, general construction steels	≤ 600 N/mm²	1xD	0,5xD	37,5	0.035	0.07	0.09	0.1	0.12	0.13	0.137	0.142
P.2 \| General construction steels, steel castings	≤ 850 N/mm²	1xD	0,5xD	32,5	0.035	0.07	0.09	0.1	0.12	0.13	0.137	0.142
P.3 \| Tool steels low alloyed	≤ 1100 N/mm²	1xD	0,5xD	18	0.035	0.07	0.09	0.1	0.12	0.13	0.137	0.142
P.4 \| Heat treatable steels	≤ 900 N/mm²	1xD	0,5xD	25	0.035	0.07	0.09	0.1	0.12	0.13	0.137	0.142
P.5 \| Tool steels high alloyed	≤ 1100 N/mm²	1xD	0,5xD	18	0.035	0.07	0.09	0.1	0.12	0.13	0.137	0.142
P.6 \| Tool and treated steels	> 1100 N/mm²	1xD	0,5xD	16	0.025	0.049	0.063	0.07	0.084	0.091	0.096	0.099
M.2 \| Corrosion- and acid-proof steels	750 - 850 N/mm²	1xD	0,5xD	10	0.035	0.07	0.09	0.1	0.12	0.13	0.137	0.142
K.2 \| Cast iron (> 240 HB)	> 800 N/mm²	1xD	0,5xD	22	0.035	0.07	0.09	0.1	0.12	0.13	0.137	0.142
S.1 \| Chrome-nickel alloys	≤ 1500 N/mm²	1xD	0,5xD	8	0.025	0.049	0.063	0.07	0.084	0.091	0.096	0.099

Calculations of cutting conditions

more +

Morse taper shank according to DIN 228 A.

more +

Universal usage. Suitable for materials up to strength 900 MPa.

more +

Chip Breaker – universal application for roughing.

more +

Helix angle = 35°. Rake angle = 12°.

more +

Very high performance high speed steel with good toughness for milling cutters and for milling of materials up to the strength of 1200 MPa.
