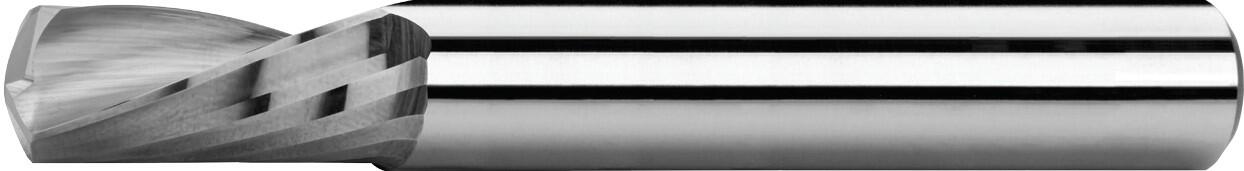

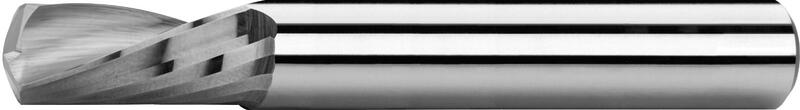

S171502 Solid carbide (SC)
Clamping element
Type W
Tool geometry
Feed direction possibility
End face design
Chip removal
Right helix
Oil coolant.
Solid carbide
Polished
D
h10

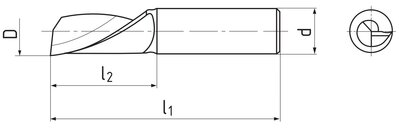

d l1 l2 Z Item code On stock
3 6 57 8 1 S171502.030 Yes
4 6 57 11 1 S171502.040 Yes
5 6 63 13 1 S171502.050 Yes
6 6 63 13 1 S171502.060 Yes
8 8 70 19 1 S171502.080 Yes
10 10 80 22 1 S171502.100 Yes
12 12 93 26 1 S171502.120 Yes

Cutting conditions


Material

Strength

Ap

Ae

Vc
fz(mm/z)
Ø3

Ø4

Ø5

Ø6

Ø8

Ø10

Ø12
N.1 | Aluminium, Aluminium cast alloys Si (Si ≤ 6%) ≤ 400 N/mm² 0,3xD 1xD 250 0,023 0,03 0,038 0,045 0,06 0,075 0,09
N.2 | Aluminium cast alloys Si (Si ≤ 12%) ≤ 600 N/mm² 0,3xD 1xD 250 0,023 0,03 0,038 0,045 0,06 0,075 0,09
N.4 | Cooper-zinc alloys, cooper-tin alloys ≤ 800 N/mm² 0,3xD 1xD 250 0,023 0,03 0,038 0,045 0,06 0,075 0,09

Calculations of cutting conditions

Product attributes

Clamping element

Clamping element

more +
Plain straight shank according to DIN 6535 HA.
Tool geometry

Tool geometry

more +
Lead of helix 20°.
End face design

End face design

Right helix

Right helix

Solid carbide

Solid carbide

more +
Carbide materials are characterised by high compressive strength, high hardness and therefore high wear resistance, but also limited flexural strength and toughness.
Type W

Type W

more +
For machining of soft materials, for example aluminium and non-ferrous metals.
Feed direction possibility

Feed direction possibility

Chip removal

Chip removal

Oil coolant.

Oil coolant.

Polished

Polished

more +
The polished surface improves chip evacuation in soft or sticky non-ferrous materials. Polishing facilitates chip evacuation and prevents material sticking to cutting edges and grooves.
