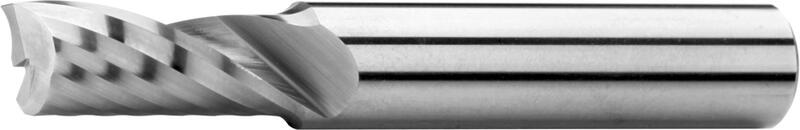

S100602 Solid carbide (SC)
Clamping element
Company norm
Type W
Tool geometry
Feed direction possibility
End face design
Oil coolant.
Solid carbide

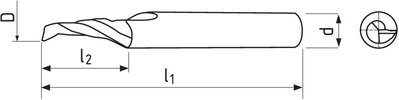

D d l1 l2 Z Item code On stock
3 6 50 8 1 S100602.030 Yes
4 6 54 11 1 S100602.040 Yes
5 6 54 13 1 S100602.050 Yes
6 6 54 13 1 S100602.060 Yes
8 8 58 19 1 S100602.080 Yes
10 10 66 22 1 S100602.100 Yes
12 12 73 26 1 S100602.120 Yes

Cutting conditions


Material

Strength

Ap

Ae

Vc
fz(mm/z)
Ø 3

Ø 6

Ø 8

Ø 10

Ø 12
N.1 | Aluminium, Aluminium cast alloys Si (Si ≤ 6%) ≤ 400 N/mm2 1,5xD 0,2xD 160 0.015 0.033 0.04 0.05 0.06
N.2 | Aluminium cast alloys Si (Si ≤ 12%) ≤ 600 N/mm2 1,5xD 0,2xD 220 0.015 0.033 0.04 0.05 0.06
N.4 | Cooper-zinc alloys, cooper-tin alloys ≤ 800 N/mm2 1,5xD 0,2xD 176 0.015 0.033 0.04 0.05 0.06

Calculations of cutting conditions

Product attributes

Clamping element

Clamping element

more +
Plain straight shank according to DIN 6535 HA.
Type W

Type W

more +
For machining of soft materials, for example aluminium and non-ferrous metals.
Feed direction possibility

Feed direction possibility

Oil coolant.

Oil coolant.

Company norm

Company norm

Tool geometry

Tool geometry

more +
Helix angle = 30°. Rake angle = 20°.
End face design

End face design

Solid carbide

Solid carbide

more +
Carbide materials are characterised by high compressive strength, high hardness and therefore high wear resistance, but also limited flexural strength and toughness.
