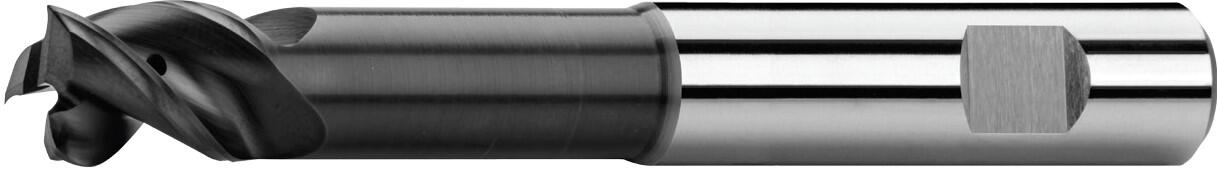

End mills long with coolant holes, 1 tooth cut over centre, 44°-46°, type W, Weldon shank, coating ta-C
|
D
e8 | d | l1 | l2 | l3 | Dn | R | Z | Item code | On stock |
|---|---|---|---|---|---|---|---|---|---|
| 6 | 6 | 62 | 7 | 24 | 5,4 | 0,1 | 3 | S112412RC.060 | Yes |
| 8 | 8 | 68 | 9 | 30 | 7,2 | 0,1 | 3 | S112412RC.080 | Yes |
| 10 | 10 | 80 | 11 | 38 | 9 | 0,1 | 3 | S112412RC.100 | No |
| 12 | 12 | 93 | 13 | 46 | 11 | 0,2 | 3 | S112412RC.120 | Yes |
| 14 | 14 | 93 | 15 | 46 | 13 | 0,2 | 3 | S112412RC.140 | Yes |
| 16 | 16 | 108 | 17 | 58 | 15 | 0,2 | 3 | S112412RC.160 | Yes |
| 18 | 18 | 108 | 19 | 59 | 17 | 0,2 | 3 | S112412RC.180 | No |
| 20 | 20 | 126 | 21 | 74 | 19 | 0,2 | 3 | S112412RC.200 | Yes |
| 25 | 25 | 150 | 26 | 92 | 24 | 0,2 | 3 | S112412RC.250 | No |
Cutting conditions
Material |
Strength |
Ap |
Ae |
Vc |
fz(mm/z) Ø3 |
Ø4 |
Ø5 |
Ø6 |
Ø8 |
Ø10 |
Ø12 |
Ø16 |
Ø20 |
Ø25 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N.1 | Aluminium, Aluminium cast alloys Si (Si ≤ 6%) | ≤ 400 N/mm² | 0,3xD | 1xD | 400 | 0,039 | 0,052 | 0,065 | 0,078 | 0,104 | 0,13 | 0,156 | 0,208 | 0,26 | 0,325 |
| N.2 | Aluminium cast alloys Si (Si ≤ 12%) | ≤ 600 N/mm² | 0,3xD | 1xD | 350 | 0,039 | 0,052 | 0,065 | 0,078 | 0,104 | 0,13 | 0,156 | 0,208 | 0,26 | 0,325 |
| N.4 | Cooper-zinc alloys, cooper-tin alloys | ≤ 800 N/mm² | 0,3xD | 1xD | 350 | 0,039 | 0,052 | 0,065 | 0,078 | 0,104 | 0,13 | 0,156 | 0,208 | 0,26 | 0,325 |
Calculations of cutting conditions
Product attributes
Straight shank with clamping flat (Weldon) according to DIN 6535 HB.
Helix angle = 44-46°.
Rake angle = 15°.
End face design - radius
With coolant holes
ta-C coating is designed for machining non-ferrous metals, aluminium alloys with higher Si content, copper, brass, bronze and plastics. Due to its small thickness, very low coefficient of friction and low tendency to stick, ta-C coating is suitable for materials with a tendency to stick as it prevents build-up on cutting edges.
For machining of soft materials, for example aluminium and non-ferrous metals.
Feed direction possibility
Oil coolant.
Carbide materials are characterised by high compressive strength, high hardness and therefore high wear resistance, but also limited flexural strength and toughness.
