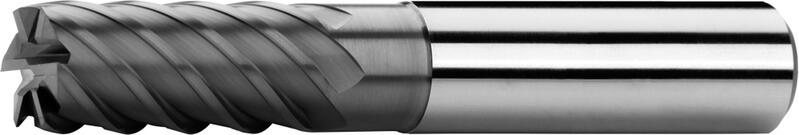

S151702 Solid carbide (SC) DIN 6527L
Clamping element
Type H
Tool geometry
Feed direction possibility
End face design
Air cooling
Solid carbide
AlCrN coating
D
e 8
d
h 5
l1 l2 l3 Dn Z Item code On stock
6 6 57 13 19 5,7 6 S151702.060 Yes
8 8 63 19 25 7,6 6 S151702.080 Yes
10 10 72 22 30 9,5 6 S151702.100 Yes
12 12 83 26 36 11,5 6 S151702.120 Yes
16 16 92 32 42 15,5 6 S151702.160 Yes
20 20 104 38 52 19,5 8 S151702.200 Yes

Cutting conditions


Material

Strength

Ap

Ae

Vc
fz(mm/z)
Ø 6

Ø 8

Ø 10

Ø 12

Ø 16

Ø 20
P.3 | Tool steels low alloyed ≤ 1100 N/mm² 1,5xD 0,015xD 175 0.03 0.04 0.045 0.055 0.075 0.09
P.5 | Tool steels high alloyed ≤ 1100 N/mm² 1,5xD 0,015xD 120 0.03 0.04 0.045 0.055 0.075 0.09
K.1 | Cast iron (≤ 240 HB) ≤ 820 N/mm² 1,5xD 0,015xD 150 0.03 0.04 0.045 0.055 0.075 0.09
K.2 | Cast iron (> 240 HB) > 800 N/mm² 1,5xD 0,015xD 110 0.03 0.04 0.045 0.055 0.075 0.09
H.1 | Hardened materials (< 54 HRC) ≤ 1920 N/mm² 1,5xD 0,015xD 180 0.03 0.04 0.045 0.055 0.075 0.09
H.2 | Hardened materials (54 - 60 HRC) 1920 - 2210 N/mm² 1,5xD 0,015xD 150 0.03 0.04 0.045 0.055 0.075 0.09

Calculations of cutting conditions

Product attributes

Clamping element

Clamping element

more +
Plain straight shank according to DIN 6535 HA.
Tool geometry

Tool geometry

more +
Helix angle = 45°. Rake angle = 3°.
End face design

End face design

Solid carbide

Solid carbide

more +
Carbide materials are characterised by high compressive strength, high hardness and therefore high wear resistance, but also limited flexural strength and toughness.
Type H

Type H

more +
Designed for milling (finishing) of materials of medium and higher strength (up to 1200 MPa). Surface roughness Ra 3,2; exceptionally even 1,6.
Feed direction possibility

Feed direction possibility

Air cooling

Air cooling

AlCrN coating

AlCrN coating

more +
Coating with very high wear resistance and excellent hot hardness.
