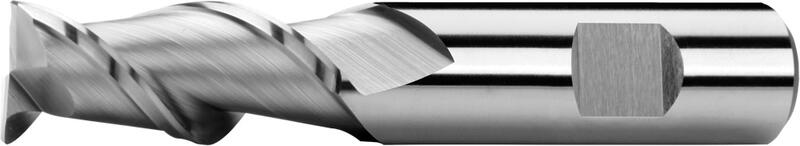

End mills long, 2 teeth cut to centre, 45°, type W, Weldon shank

S111612 Solid carbide (SC)

Cutting conditions Product attributes

D h 10	d h 6	l₁	l₂	Z	Item code	On stock
3	6	57	8	2	S111612.030	Yes
3,5	6	57	10	2	S111612.035	Yes
4	6	57	11	2	S111612.040	Yes
4,5	6	57	11	2	S111612.045	No
5	6	57	13	2	S111612.050	No
6	6	57	13	2	S111612.060	Yes
7	8	63	16	2	S111612.070	No
8	8	63	19	2	S111612.080	Yes
9	10	72	19	2	S111612.090	Yes
10	10	72	22	2	S111612.100	No
12	12	83	26	2	S111612.120	No
14	14	83	26	2	S111612.140	No
16	16	92	32	2	S111612.160	Yes
18	18	92	32	2	S111612.180	No
20	20	104	38	2	S111612.200	Yes

Cutting conditions

Material	Strength	A_p	A_e	V_c	fz(mm/z) Ø 3	Ø 6	Ø 8	Ø 10	Ø 12	Ø 16	Ø 18	Ø 20
N.1 \| Aluminium, Aluminium cast alloys Si (Si ≤ 6%)	≤ 400 N/mm²	1,5xD	0,2xD	160	0.02	0.04	0.053	0.067	0.08	0.107	0.13	0.135
N.2 \| Aluminium cast alloys Si (Si ≤ 12%)	≤ 600 N/mm²	1,5xD	0,2xD	220	0.02	0.04	0.053	0.067	0.08	0.107	0.13	0.135
N.4 \| Cooper-zinc alloys, cooper-tin alloys	≤ 800 N/mm²	1,5xD	0,2xD	176	0.016	0.032	0.0424	0.0536	0.064	0.0856	0.096	0.164

Calculations of cutting conditions

Product attributes

Clamping element

more +

Straight shank with clamping flat (Weldon) according to DIN 6535 HB.

Type W

more +

For machining of soft materials, for example aluminium and non-ferrous metals.

Feed direction possibility

Oil coolant.

Company norm

Tool geometry

more +

Helix angle = 45°. Rake angle = 15°.

End face design

Solid carbide

more +

Carbide materials are characterised by high compressive strength, high hardness and therefore high wear resistance, but also limited flexural strength and toughness.
