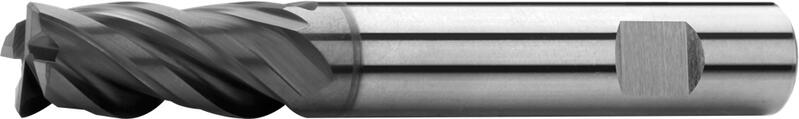

End mills long, 2 teeth cut to centre, 35°–38°, type N, Weldon shank, coating AlTiN

S141612X AlTiN Solid carbide (SC) DIN 6527L

Cutting conditions Product attributes

D h 10	d h 6	l₁	l₂	Z	Item code	On stock
3	6	57	8	4	S141612X.030 AlTiN	Yes
3,5	6	57	10	4	S141612X.035 AlTiN	No
4	6	57	11	4	S141612X.040 AlTiN	Yes
4,5	6	57	11	4	S141612X.045 AlTiN	Yes
5	6	57	13	4	S141612X.050 AlTiN	Yes
6	6	57	13	4	S141612X.060 AlTiN	Yes
8	8	63	19	4	S141612X.080 AlTiN	Yes
10	10	72	22	4	S141612X.100 AlTiN	Yes
12	12	83	26	4	S141612X.120 AlTiN	Yes
14	14	83	26	4	S141612X.140 AlTiN	No
16	16	92	32	4	S141612X.160 AlTiN	Yes
18	18	92	32	4	S141612X.180 AlTiN	Yes
20	20	104	38	4	S141612X.200 AlTiN	No

Cutting conditions

Material	Strength	A_p	A_e	V_c	fz(mm/z) Ø 3	Ø 6	Ø 8	Ø 10	Ø 12	Ø 16	Ø 18	Ø 20
P.1 \| Free-cutting steels, general construction steels	≤ 600 N/mm²	1,5xD	0,3xD	180	0.012	0.024	0.032	0.04	0.048	0.064	0.072	0.08
P.3 \| Tool steels low alloyed	≤ 1100 N/mm²	1,5xD	0,3xD	100	0.012	0.024	0.032	0.04	0.048	0.064	0.072	0.08
P.5 \| Tool steels high alloyed	≤ 1100 N/mm²	1,5xD	0,3xD	80	0.012	0.024	0.032	0.04	0.048	0.064	0.072	0.08
M.1 \| Corrosion- and acid-proof steels	≤ 750 N/mm²	1,5xD	0,3xD	90	0.012	0.024	0.032	0.04	0.048	0.064	0.072	0.08
M.2 \| Corrosion- and acid-proof steels	750 - 850 N/mm²	1,5xD	0,3xD	80	0.012	0.024	0.032	0.04	0.048	0.064	0.072	0.08
K.1 \| Cast iron (≤ 240 HB)	≤ 820 N/mm²	1,5xD	0,3xD	140	0.012	0.024	0.032	0.04	0.048	0.064	0.072	0.08
K.2 \| Cast iron (> 240 HB)	> 800 N/mm²	1,5xD	0,3xD	100	0.012	0.024	0.032	0.04	0.048	0.064	0.072	0.08
S.1 \| Chrome-nickel alloys	≤ 1500 N/mm²	1,5xD	0,3xD	50	0.012	0.024	0.032	0.04	0.048	0.064	0.072	0.08
S.2 \| Titanium, titanium alloys	≤ 1250 N/mm²	1,5xD	0,3xD	70	0.012	0.024	0.032	0.04	0.048	0.064	0.072	0.08
H.1 \| Hardened materials (< 54 HRC)	≤ 1920 N/mm²	1,5xD	0,3xD	80	0.012	0.024	0.032	0.04	0.048	0.064	0.072	0.08

Calculations of cutting conditions

Product attributes

Clamping element

more +

Straight shank with clamping flat (Weldon) according to DIN 6535 HB.

Tool geometry

more +

Helix angle = 35/38°. Rake angle = 10°.

End face design

Solid carbide

more +

Carbide materials are characterised by high compressive strength, high hardness and therefore high wear resistance, but also limited flexural strength and toughness.

Type N

more +

Universal usage. Suitable for materials up to strength 900 MPa.

Feed direction possibility

Oil coolant.

Coating AlTiN

more +

Offers similar qualities as TiAlN, but even higher hardness. Substanial temperature stability. Designed for the most demanding applications. It provides excellent result mainly when combined with HSSE-PM steels (ASP 2030). The milling cutters manufactured from this steel are coated with AlTiN as standard.
