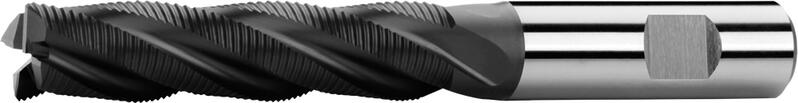

129517 AlTiN High-speed steel HSSE-PM DIN 844L
Clamping element
Type HR
Tool geometry
Feed direction possibility
Material HSSE-PM
Coating AlTiN
D
k 12
d
h 6
l1 l2 Z Item code On stock
6 6 68 24 4 129517.060 AlTiN Yes
8 10 88 38 4 129517.080 AlTiN Yes
10 10 95 45 4 129517.100 AlTiN Yes
12 12 110 53 4 129517.120 AlTiN Yes
14 12 110 53 4 129517.140 AlTiN Yes
16 16 123 63 4 129517.160 AlTiN Yes
18 16 123 63 4 129517.180 AlTiN Yes
20 20 141 75 4 129517.200 AlTiN Yes
22 20 141 75 5 129517.220 AlTiN Yes

Cutting conditions


Material

Strength

Ap

Ae

Vc
fz(mm/z)
Ø 6

Ø 8

Ø 10

Ø 12

Ø 16

Ø 18

Ø 20
P.3 | Tool steels low alloyed ≤ 1100 N/mm² 1,5xD 0,5xD 61.5 0.022 0.028 0.039 0.044 0.077 0.088 0.1
P.5 | Tool steels high alloyed ≤ 1100 N/mm² 1,5xD 0,5xD 61.5 0.022 0.028 0.039 0.044 0.077 0.088 0.1
P.6 | Tool and treated steels > 1100 N/mm² 1,5xD 0,5xD 51 0.0154 0.0196 0.0273 0.0308 0.0339 0.0616 0.07
K.2 | Cast iron (> 240 HB) > 800 N/mm² 1,5xD 0,5xD 66 0.022 0.028 0.039 0.044 0.077 0.088 0.1
S.1 | Chrome-nickel alloys ≤ 1500 N/mm² 1,5xD 0,5xD 31.5 0.0154 0.0196 0.0273 0.0308 0.0339 0.0616 0.07
S.2 | Titanium, Titanium alloys ≤ 1250 N/mm² 1,5xD 0,5xD 30 0.0154 0.0196 0.0273 0.0308 0.0339 0.0616 0.07

Calculations of cutting conditions

Product attributes

Clamping element

Clamping element

more +
Straight shank with clamping flat (Weldon) according to DIN 1835 B.
Tool geometry

Tool geometry

more +
Helix angle = 30°. Rake angle = 10°.
Material HSSE-PM

Material HSSE-PM

more +
Extra high performance high speed steel produced by powder metallurgy. It has a homogeneous structure resulting in higher dimension stability and longer tool life. It is applicable for machining of materials with very high strength and materials hard to machine, such as Titanium and its alloys. The milling cutters made from this material are delivered with AlTiN coating as a standard.
Type HR

Type HR

more +
For roughing operation and materials of medium and higher strength (up to 1200 MPa), surface roughness Ra 6,3 and more.
Feed direction possibility

Feed direction possibility

Coating AlTiN

Coating AlTiN

more +
Offers similar qualities as TiAlN, but even higher hardness. Substanial temperature stability. Designed for the most demanding applications. It provides excellent result mainly when combined with HSSE-PM steels (ASP 2030). The milling cutters manufactured from this steel are coated with AlTiN as standard.
