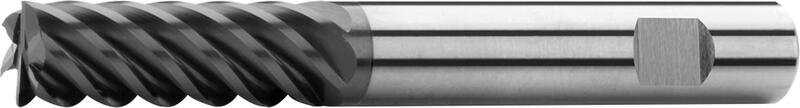

S131612L Solid carbide (SC)
Clamping element
Company norm
Type H
Tool geometry
Feed direction possibility
End face design
Oil coolant.
Solid carbide
Coating AlTiN
D
h 10
d
h 6
l1 l2 Z Item code On stock
6 6 62 18 6 S131612L.060 No
8 8 68 24 6 S131612L.080 Yes
10 10 80 30 6 S131612L.100 No
12 12 93 36 6 S131612L.120 No
14 14 100 45 6 S131612L.140 No
16 16 108 48 6 S131612L.160 Yes
18 18 115 55 8 S131612L.180 No
20 20 126 60 8 S131612L.200 Yes

Cutting conditions


Material

Strength

Ap

Ae

Vc
fz(mm/z)
Ø 6

Ø 8

Ø 10

Ø 12

Ø 16

Ø 18

Ø 20
P.1 | Free-cutting steels, general construction steels ≤ 600 N/mm² 2,75xD 0,05xD 180 0.02 0.027 0.033 0.04 0.053 0.06 0.067
P.3 | Tool steels low alloyed ≤ 1100 N/mm² 2,75xD 0,05xD 100 0.02 0.027 0.033 0.04 0.053 0.06 0.067
P.5 | Tool steels high alloyed ≤ 1100 N/mm² 2,75xD 0,05xD 80 0.02 0.027 0.033 0.04 0.053 0.06 0.067
M.1 | Corrosion- and acid-proof steels ≤ 750 N/mm² 2,75xD 0,05xD 90 0.02 0.027 0.033 0.04 0.053 0.06 0.067
M.2 | Corrosion- and acid-proof steels 750 - 850 N/mm² 2,75xD 0,05xD 80 0.02 0.027 0.033 0.04 0.053 0.06 0.067
K.1 | Cast iron (≤ 240 HB) ≤ 820 N/mm² 2,75xD 0,05xD 140 0.02 0.027 0.033 0.04 0.053 0.06 0.067
K.2 | Cast iron (> 240 HB) > 800 N/mm² 2,75xD 0,05xD 100 0.02 0.027 0.033 0.04 0.053 0.06 0.067
S.1 | Chrome-nickel alloys ≤ 1500 N/mm² 2,75xD 0,05xD 50 0.02 0.027 0.033 0.04 0.053 0.06 0.067
S.2 | Titanium, titanium alloys ≤ 1250 N/mm² 2,75xD 0,05xD 70 0.02 0.027 0.033 0.04 0.053 0.06 0.067
H.1 | Hardened materials (< 54 HRC) ≤ 1920 N/mm² 2,75xD 0,05xD 80 0.02 0.027 0.033 0.04 0.053 0.06 0.067

Calculations of cutting conditions

Product attributes

Clamping element

Clamping element

more +
Straight shank with clamping flat (Weldon) according to DIN 6535 HB.
Type H

Type H

more +
Designed for milling (finishing) of materials of medium and higher strength (up to 1200 MPa). Surface roughness Ra 3,2; exceptionally even 1,6.
Feed direction possibility

Feed direction possibility

Oil coolant.

Oil coolant.

Coating AlTiN

Coating AlTiN

more +
Offers similar qualities as TiAlN, but even higher hardness. Substanial temperature stability. Designed for the most demanding applications. It provides excellent result mainly when combined with HSSE-PM steels (ASP 2030). The milling cutters manufactured from this steel are coated with AlTiN as standard.
Company norm

Company norm

Tool geometry

Tool geometry

more +
Helix angle = 45°. Rake angle = 12°.
End face design

End face design

Solid carbide

Solid carbide

more +
Carbide materials are characterised by high compressive strength, high hardness and therefore high wear resistance, but also limited flexural strength and toughness.
