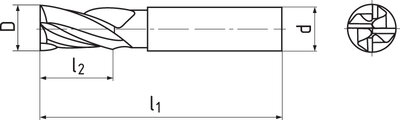

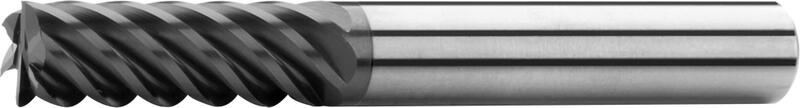

End mills extra long, fine teeth, 45°, type H, plain shank, coating AlTiN
D
h 10 |
d
h 6 | l1 | l2 | Z | Item code | On stock |
---|---|---|---|---|---|---|
6 | 6 | 62 | 18 | 6 | S131602L.060 AlTiN | Yes |
8 | 8 | 68 | 24 | 6 | S131602L.080 AlTiN | Yes |
10 | 10 | 80 | 30 | 6 | S131602L.100 AlTiN | Yes |
12 | 12 | 93 | 36 | 6 | S131602L.120 AlTiN | Yes |
14 | 14 | 100 | 45 | 6 | S131602L.140 AlTiN | Yes |
16 | 16 | 108 | 48 | 6 | S131602L.160 AlTiN | Yes |
18 | 18 | 115 | 55 | 8 | S131602L.180 AlTiN | No |
20 | 20 | 126 | 60 | 8 | S131602L.200 AlTiN | Yes |
Cutting conditions
Material |
Strength |
Ap |
Ae |
Vc |
fz(mm/z) Ø 6 |
Ø 8 |
Ø 10 |
Ø 12 |
Ø 16 |
Ø 18 |
Ø 20 |
---|---|---|---|---|---|---|---|---|---|---|---|
P.1 | Free-cutting steels, general construction steels | ≤ 600 N/mm² | 2,75xD | 0,05xD | 180 | 0.02 | 0.027 | 0.033 | 0.04 | 0.053 | 0.06 | 0.067 |
P.3 | Tool steels low alloyed | ≤ 1100 N/mm² | 2,75xD | 0,05xD | 100 | 0.02 | 0.027 | 0.033 | 0.04 | 0.053 | 0.06 | 0.067 |
P.5 | Tool steels high alloyed | ≤ 1100 N/mm² | 2,75xD | 0,05xD | 80 | 0.02 | 0.027 | 0.033 | 0.04 | 0.053 | 0.06 | 0.067 |
M.1 | Corrosion- and acid-proof steels | ≤ 750 N/mm² | 2,75xD | 0,05xD | 90 | 0.02 | 0.027 | 0.033 | 0.04 | 0.053 | 0.06 | 0.067 |
M.2 | Corrosion- and acid-proof steels | 750 - 850 N/mm² | 2,75xD | 0,05xD | 80 | 0.02 | 0.027 | 0.033 | 0.04 | 0.053 | 0.06 | 0.067 |
K.1 | Cast iron (≤ 240 HB) | ≤ 820 N/mm² | 2,75xD | 0,05xD | 140 | 0.02 | 0.027 | 0.033 | 0.04 | 0.053 | 0.06 | 0.067 |
K.2 | Cast iron (> 240 HB) | > 800 N/mm² | 2,75xD | 0,05xD | 100 | 0.02 | 0.027 | 0.033 | 0.04 | 0.053 | 0.06 | 0.067 |
S.1 | Chrome-nickel alloys | ≤ 1500 N/mm² | 2,75xD | 0,05xD | 50 | 0.02 | 0.027 | 0.033 | 0.04 | 0.053 | 0.06 | 0.067 |
S.2 | Titanium, titanium alloys | ≤ 1250 N/mm² | 2,75xD | 0,05xD | 70 | 0.02 | 0.027 | 0.033 | 0.04 | 0.053 | 0.06 | 0.067 |
H.1 | Hardened materials (< 54 HRC) | ≤ 1920 N/mm² | 2,75xD | 0,05xD | 80 | 0.02 | 0.027 | 0.033 | 0.04 | 0.053 | 0.06 | 0.067 |
Calculations of cutting conditions
Product attributes
Clamping element
more +Plain straight shank according to DIN 6535 HA.
Type H
more +Designed for milling (finishing) of materials of medium and higher strength (up to 1200 MPa). Surface roughness Ra 3,2; exceptionally even 1,6.
Feed direction possibility
Oil coolant.
Coating AlTiN
more +Offers similar qualities as TiAlN, but even higher hardness. Substanial temperature stability. Designed for the most demanding applications. It provides excellent result mainly when combined with HSSE-PM steels (ASP 2030). The milling cutters manufactured from this steel are coated with AlTiN as standard.
