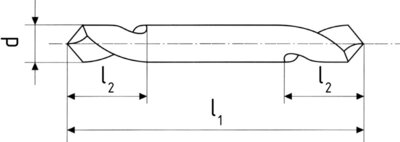

Double ended body drills
| D | l1 | l2 | Item code | On stock |
|---|---|---|---|---|
| 2,5 | 43 | 9,5 | VN40090.0250 | Yes |
| 2,6 | 43 | 9,5 | VN40090.0260 | No |
| 2,8 | 46 | 10,6 | VN40090.0280 | No |
| 3 | 46 | 10,6 | VN40090.0300 | Yes |
| 3,1 | 49 | 11,2 | VN40090.0310 | No |
| 3,2 | 49 | 11,2 | VN40090.0320 | No |
| 3,3 | 49 | 11,2 | VN40090.0330 | No |
| 3,4 | 52 | 12,5 | VN40090.0340 | No |
| 3,5 | 52 | 12,5 | VN40090.0350 | No |
| 3,7 | 52 | 12,5 | VN40090.0370 | No |
| 4 | 55 | 14 | VN40090.0400 | Yes |
| 4,1 | 55 | 14 | VN40090.0410 | Yes |
| 4,2 | 55 | 14 | VN40090.0420 | Yes |
| 4,3 | 58 | 15,5 | VN40090.0430 | No |
| 4,5 | 58 | 15,5 | VN40090.0450 | No |
| 4,8 | 62 | 19 | VN40090.0480 | No |
| 4,9 | 62 | 19 | VN40090.0490 | No |
| 5 | 62 | 19 | VN40090.0500 | Yes |
| 5,1 | 62 | 19 | VN40090.0510 | No |
| 5,2 | 62 | 19 | VN40090.0520 | Yes |
| 5,5 | 66 | 24 | VN40090.0550 | No |
| 5,6 | 66 | 24 | VN40090.0560 | No |
| 6 | 66 | 24 | VN40090.0600 | Yes |
| 6,1 | 70 | 24 | VN40090.0610 | No |
| 6,2 | 70 | 24 | VN40090.0620 | No |
| 6,4 | 70 | 24 | VN40090.0640 | No |
| 6,5 | 70 | 24 | VN40090.0650 | No |
| 6,8 | 74 | 24 | VN40090.0680 | No |
| 7 | 74 | 24 | VN40090.0700 | Yes |
| 8 | 79 | 25 | VN40090.0800 | Yes |
| 8,5 | 79 | 25 | VN40090.0850 | No |
| 10 | 89 | 25 | VN40090.1000 | Yes |
Cutting conditions
Material |
Strength |
|---|---|
| P.1 | Free-cutting steels, general construction steels | ≤ 600 N/mm² |
| P.2 | General construction steels, steel castings | ≤ 850 N/mm² |
| N.1 | Aluminium, Aluminium cast alloys Si (Si ≤ 6%) | ≤ 400 N/mm² |
| N.2 | Aluminium cast alloys Si (Si ≤ 12%) | ≤ 600 N/mm² |
| N.3 | Aluminium cast alloys Si (Si > 12%) | ≤ 600 N/mm² |
| N.4 | Cooper-zinc alloys, cooper-tin alloys | ≤ 800 N/mm² |
Calculations of cutting conditions
Product attributes
Lead of helix 25° - 30°.
