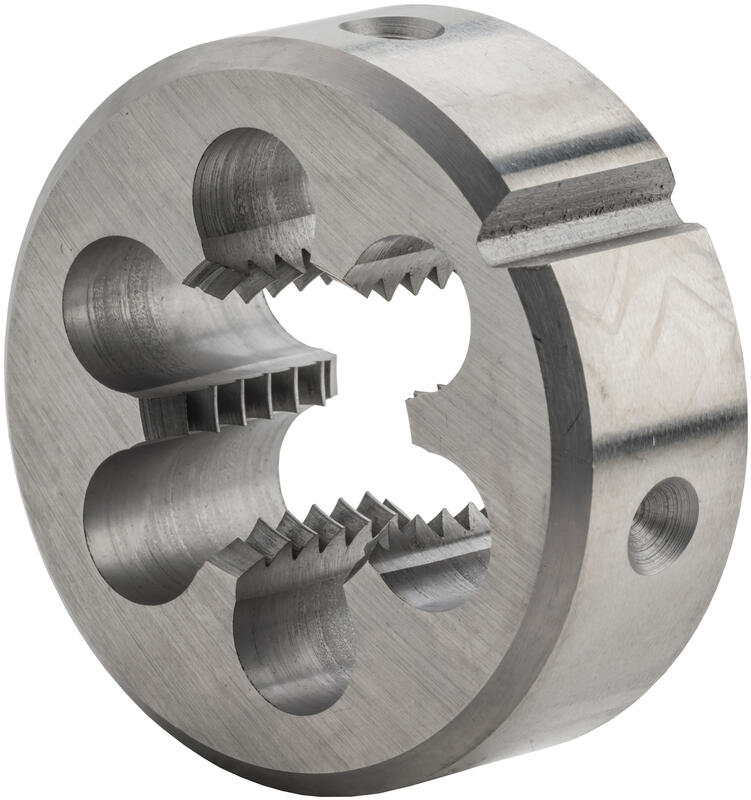

Circular dies, fine metric thread
|
D
6 g | P | S | d | d1 | h | Item code | On stock |
|---|---|---|---|---|---|---|---|
| M2,3 | 0,4 | 3 | 16 | 2,26 | 5 | CD72090.023040 | No |
| M2,3 | 0,45 | 3 | 16 | 2,28 | 5 | CD72090.023045 | No |
| M2,5 | 0,35 | 3 | 16 | 2,44 | 5 | CD72090.025035 | No |
| M2,6 | 0,45 | 3 | 16 | 2,56 | 5 | CD72090.026045 | No |
| M3 | 0,35 | 3 | 20 | 2,94 | 5 | CD72090.030035 | No |
| M3,5 | 0,35 | 3 | 20 | 3,44 | 5 | CD72090.035035 | Yes |
| M4 | 0,5 | 3 | 20 | 3,93 | 5 | CD72090.040050 | No |
| M4,5 | 0,5 | 3 | 20 | 4,43 | 5 | CD72090.045050 | No |
| M5 | 0,5 | 4 | 20 | 4,93 | 5 | CD72090.050050 | Yes |
| M5,5 | 0,5 | 4 | 20 | 5,43 | 5 | CD72090.055050 | No |
| M6 | 0,5 | 4 | 20 | 5,93 | 7 | CD72090.060050 | Yes |
| M6 | 0,75 | 4 | 20 | 5,91 | 7 | CD72090.060075 | Yes |
| M7 | 0,75 | 4 | 25 | 6,9 | 9 | CD72090.070075 | No |
| M8 | 0,5 | 4 | 25 | 7,93 | 9 | CD72090.080050 | No |
| M8 | 0,75 | 4 | 25 | 7,9 | 9 | CD72090.080075 | No |
| M8 | 1 | 4 | 25 | 7,88 | 9 | CD72090.080100 | Yes |
| M9 | 0,75 | 4 | 25 | 8,9 | 9 | CD72090.090075 | No |
| M9 | 1 | 4 | 25 | 8,88 | 9 | CD72090.090100 | No |
| M10 | 0,75 | 4 | 30 | 9,9 | 11 | CD72090.100075 | No |
| M10 | 1 | 4 | 30 | 9,88 | 11 | CD72090.100100 | Yes |
| M10 | 1,25 | 4 | 30 | 9,86 | 11 | CD72090.100125 | No |
| M11 | 0,75 | 5 | 30 | 10,91 | 11 | CD72090.110075 | No |
| M11 | 1 | 5 | 30 | 10,88 | 11 | CD72090.110100 | No |
| M12 | 1 | 4 | 38 | 11,88 | 10 | CD72090.120100 | No |
| M12 | 1,25 | 4 | 38 | 11,86 | 10 | CD72090.120125 | Yes |
| M12 | 1,5 | 4 | 38 | 11,85 | 10 | CD72090.120150 | No |
| M14 | 1 | 5 | 38 | 13,85 | 10 | CD72090.140100 | No |
| M14 | 1,25 | 5 | 38 | 13,88 | 10 | CD72090.140125 | No |
| M14 | 1,5 | 5 | 38 | 13,86 | 10 | CD72090.140150 | No |
| M15 | 1 | 5 | 38 | 14,88 | 10 | CD72090.150100 | No |
| M15 | 1,5 | 5 | 38 | 14,85 | 10 | CD72090.150150 | No |
| M16 | 1 | 5 | 45 | 18,88 | 14 | CD72090.160100 | Yes |
| M16 | 1,5 | 5 | 45 | 15,85 | 14 | CD72090.160150 | Yes |
| M17 | 1 | 5 | 45 | 16,38 | 14 | CD72090.170100 | No |
| M17 | 1,5 | 5 | 45 | 16,85 | 14 | CD72090.170150 | No |
| M18 | 1 | 5 | 45 | 17,88 | 14 | CD72090.180100 | No |
| M18 | 1,5 | 5 | 45 | 17,85 | 14 | CD72090.180150 | No |
| M18 | 2 | 5 | 45 | 17,82 | 14 | CD72090.180200 | No |
| M20 | 1 | 6 | 45 | 19,88 | 14 | CD72090.200100 | No |
| M20 | 1,5 | 6 | 45 | 19,85 | 14 | CD72090.200150 | No |
| M20 | 2 | 6 | 45 | 19,82 | 14 | CD72090.200200 | Yes |
| M22 | 1 | 5 | 55 | 21,88 | 16 | CD72090.220100 | No |
| M22 | 1,5 | 5 | 55 | 21,85 | 16 | CD72090.220150 | No |
| M22 | 2 | 5 | 55 | 21,82 | 16 | CD72090.220200 | No |
| M24 | 1 | 6 | 55 | 23,88 | 16 | CD72090.240100 | No |
| M24 | 1,5 | 6 | 55 | 23,85 | 16 | CD72090.240150 | No |
| M24 | 2 | 6 | 55 | 23,82 | 16 | CD72090.240200 | No |
| M25 | 1,5 | 6 | 55 | 24,85 | 16 | CD72090.250150 | No |
| M26 | 1,5 | 6 | 55 | 25,85 | 16 | CD72090.260150 | No |
| M27 | 1 | 6 | 65 | 26,88 | 18 | CD72090.270100 | No |
| M27 | 1,5 | 6 | 65 | 26,85 | 18 | CD72090.270150 | No |
| M27 | 2 | 6 | 65 | 26,82 | 18 | CD72090.270200 | No |
| M28 | 1,5 | 6 | 65 | 27,85 | 18 | CD72090.280150 | No |
| M28 | 2 | 6 | 65 | 27,82 | 18 | CD72090.280200 | No |
| M30 | 1 | 6 | 65 | 29,88 | 18 | CD72090.300100 | No |
| M30 | 1,5 | 6 | 65 | 29,85 | 18 | CD72090.300150 | No |
| M30 | 2 | 6 | 65 | 29,82 | 18 | CD72090.300200 | No |
Cutting conditions
Material |
Strength |
|---|---|
| P.2 | General construction steels, steel castings | ≤ 850 N/mm² |
| P.3 | Tool steels low alloyed | ≤ 1100 N/mm² |
| P.4 | Heat treatable steels | ≤ 900 N/mm² |
| P.5 | Tool steels high alloyed | ≤ 1100 N/mm² |
| P.6 | Tool and treated steels | > 1100 N/mm² |
| M.1 | Corrosion- and acid-proof steels | ≤ 750 N/mm² |
| M.2 | Corrosion- and acid-proof steels | 750 - 850 N/mm² |
| M.3 | Corrosion- and acid-proof steels | > 850 N/mm² |
| K.1 | Cast iron (≤ 240 HB) | ≤ 820 N/mm² |
| K.2 | Cast iron (> 240 HB) | > 800 N/mm² |
| N.4 | Cooper-zinc alloys, cooper-tin alloys | ≤ 800 N/mm² |
Calculations of cutting conditions
Product attributes
Chamfer
Lead of screw thread
Fine ISO metric thread
Angle of thread
Thread standard
High speed steel of average performance, it is applicable especially for cutters of smaller diameters and for milling of materials up to the strength of 900 MPa.
