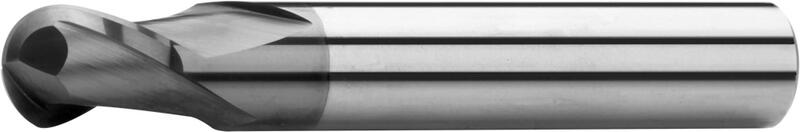

Ball nose end mills short, 2-fluted, type N, plain shank, coating AlTiN
R |
D
k 12 |
d
h 6 | l1 | l2 | Z | Item code | On stock |
---|---|---|---|---|---|---|---|
1,5 | 3 | 6 | 50 | 4 | 2 | S510602.030 | Yes |
2 | 4 | 6 | 54 | 5 | 2 | S510602.040 | Yes |
2,5 | 5 | 6 | 54 | 6 | 2 | S510602.050 | Yes |
3 | 6 | 6 | 54 | 7 | 2 | S510602.060 | Yes |
4 | 8 | 8 | 58 | 9 | 2 | S510602.080 | Yes |
5 | 10 | 10 | 66 | 11 | 2 | S510602.100 | No |
6 | 12 | 12 | 73 | 12 | 2 | S510602.120 | Yes |
7 | 14 | 14 | 75 | 14 | 2 | S510602.140 | No |
8 | 16 | 16 | 82 | 16 | 2 | S510602.160 | No |
9 | 18 | 18 | 84 | 18 | 2 | S510602.180 | Yes |
10 | 20 | 20 | 92 | 20 | 2 | S510602.200 | No |
Cutting conditions
Material |
Strength |
Ap |
Ae |
Vc |
fz(mm/z) Ø 3 |
Ø 6 |
Ø 8 |
Ø 10 |
Ø 12 |
Ø 16 |
Ø 18 |
Ø 20 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
P.1 | Free-cutting steels, general construction steels | ≤ 600 N/mm² | 0,025xD | 0,05xD | 250 | 0.05 | 0.1 | 0.133 | 0.167 | 0.2 | 0.267 | 0.3 | 0.333 |
P.3 | Tool steels low alloyed | ≤ 1100 N/mm² | 0,025xD | 0,05xD | 180 | 0.05 | 0.1 | 0.133 | 0.167 | 0.2 | 0.267 | 0.3 | 0.333 |
P.5 | Tool steels high alloyed | ≤ 1100 N/mm² | 0,025xD | 0,05xD | 120 | 0.05 | 0.1 | 0.133 | 0.167 | 0.2 | 0.267 | 0.3 | 0.333 |
M.1 | Corrosion- and acid-proof steels | ≤ 750 N/mm² | 0,025xD | 0,05xD | 110 | 0.05 | 0.1 | 0.133 | 0.167 | 0.2 | 0.267 | 0.3 | 0.333 |
M.2 | Corrosion- and acid-proof steels | 750 - 850 N/mm² | 0,025xD | 0,05xD | 100 | 0.05 | 0.1 | 0.133 | 0.167 | 0.2 | 0.267 | 0.3 | 0.333 |
K.1 | Cast iron (≤ 240 HB) | ≤ 820 N/mm² | 0,025xD | 0,05xD | 180 | 0.05 | 0.1 | 0.133 | 0.167 | 0.2 | 0.267 | 0.3 | 0.333 |
K.2 | Cast iron (> 240 HB) | > 800 N/mm² | 0,025xD | 0,05xD | 140 | 0.05 | 0.1 | 0.133 | 0.167 | 0.2 | 0.267 | 0.3 | 0.333 |
N.1 | Aluminium, Aluminium cast alloys Si (Si ≤ 6%) | ≤ 400 N/mm² | 0,025xD | 0,05xD | 350 | 0.05 | 0.1 | 0.133 | 0.167 | 0.2 | 0.267 | 0.3 | 0.333 |
N.4 | Cooper-zinc alloys, cooper-tin alloys | ≤ 800 N/mm² | 0,025xD | 0,05xD | 450 | 0.05 | 0.1 | 0.133 | 0.167 | 0.2 | 0.267 | 0.3 | 0.333 |
H.1 | Hardened materials (< 54 HRC) | ≤ 1920 N/mm² | 0,025xD | 0,05xD | 80 | 0.05 | 0.1 | 0.133 | 0.167 | 0.2 | 0.267 | 0.3 | 0.333 |
Calculations of cutting conditions
Product attributes
Plain straight shank according to DIN 6535 HA.
Helix angle = 30°.
Rake angle = 12°.

Oil coolant.
Offers similar qualities as TiAlN, but even higher hardness. Substanial temperature stability. Designed for the most demanding applications. It provides excellent result mainly when combined with HSSE-PM steels (ASP 2030). The milling cutters manufactured from this steel are coated with AlTiN as standard.
